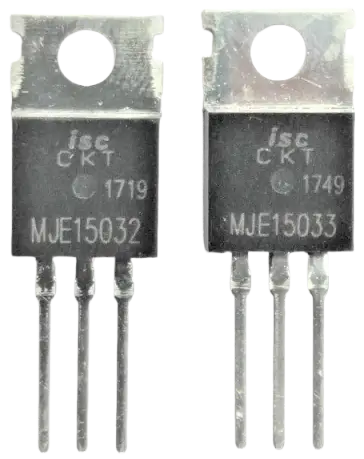

The MJE15032 is an NPN silicon power transistor designed for high-frequency and high-power applications, commonly used as a driver stage in audio amplifier circuits.
Configuration:
NPN bipolar junction transistor
Complementary pair with MJE15033 (PNP)
Electrical Characteristics:
Collector-emitter voltage (VCEO): 250 V
Collector-base voltage (VCB): 250 V
Continuous collector current (IC): 8 A
Peak collector current (ICM): 16 A
Total power dissipation: 50 W (at Tc = 25 °C)
Transition frequency (fT): approximately 30 MHz
Package:
TO-220 through-hole package
Construction:
Suitable for PCB mounting with heatsink for proper thermal management
Configuration Notes:
Designed for high-speed switching and linear amplification
Requires appropriate biasing and heat dissipation for reliable operation
