₹2.00Original price was: ₹2.00.₹1.00Current price is: ₹1.00.

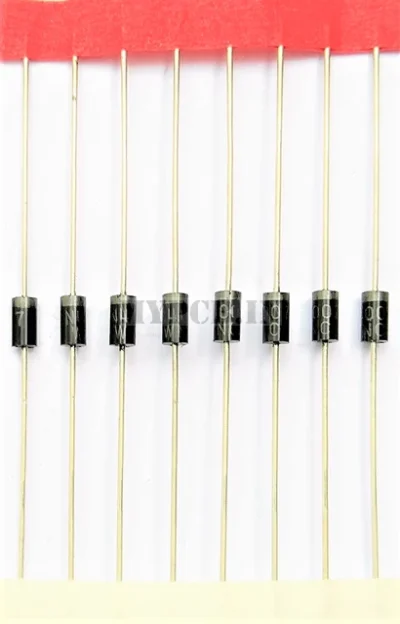

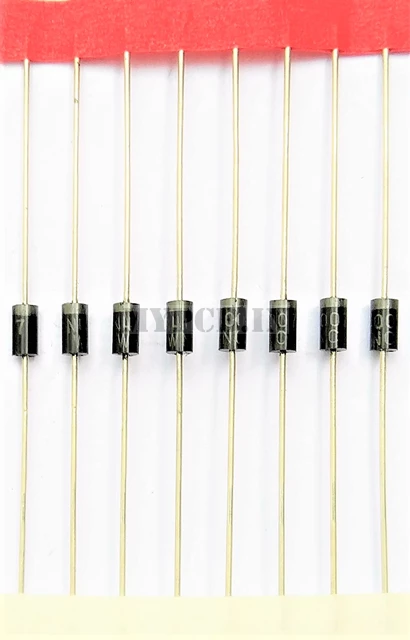

• 1N4007 rectifier diode
• Maximum voltage: 1000 V
• Maximum current: 1 A
• Peak surge current: 30 A
• Forward voltage drop: ~1.1 V
• DO-41 through-hole package
• Suitable for rectification and protection circuits
The 1N4007 is a general-purpose rectifier diode designed for AC to DC conversion, suitable for power supply and protection applications.
Configuration:
Rectifier diode
Silicon construction
Electrical Characteristics:
Maximum forward rectified current (IF): 1 A
Maximum working voltage (VRRM): 1000 V
Peak forward surge current (IFSM): 30 A
Forward voltage drop (VF): approximately 1.1 V
Package:
DO-41 axial lead through-hole package
Construction:
Durable epoxy body with axial leads
Designed for PCB mounting and general-purpose use
Configuration Notes:
Suitable for low to medium current rectification
High voltage capability for power supply circuits
Reliable performance in standard rectification applications
Intended Use:
Power supply rectification
AC to DC conversion circuits
Protection circuits
General-purpose electronic applications
