TDA7294 100W Mono Amplifier Board Review
Introduction

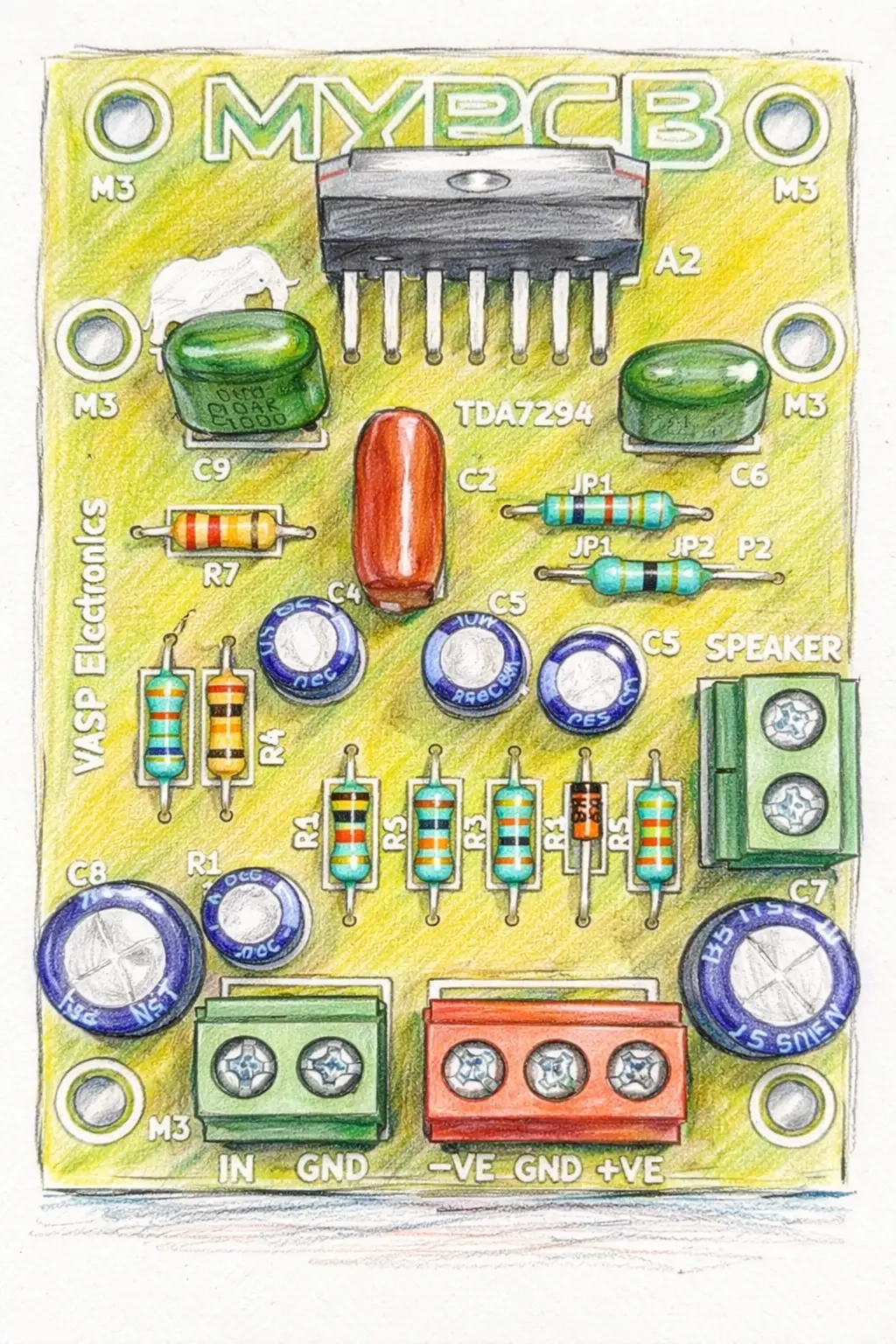

The TDA7294 100W Mono Amplifier Board is a single-channel Class-AB audio amplifier built around the STMicroelectronics TDA7294 DMOS power amplifier IC. It is designed for high-power mono applications such as subwoofers or dedicated hi-fi speaker channels.
This review covers build quality, installation requirements, power specifications, and overall performance expectations for DIY audio users.
Build & Design
- Single-channel (mono) amplifier layout
- TDA7294 DMOS output IC mounted for external heatsinking
- Screw terminals for power and speaker connections
- Standard passive component network for stability and bias control
The layout is practical and straightforward. It is clearly intended for DIY builders who are comfortable working with linear power supplies and proper heatsinking.
Technical Specifications
- Amplifier IC: TDA7294
- Amplifier Class: Class-AB
- Channel Configuration: Mono
- Maximum Output Power: Up to 100W (depending on voltage and load)
- Supported Speaker Load: 4Ω / 8Ω
- Supply Type: Dual-rail DC
Power Requirements & Recommended Transformer
This amplifier requires a dual-rail power supply. It cannot operate from a single 12V adapter or typical SMPS charger.
For 8Ω Speaker Load:
- Recommended Transformer: 24-0-24 VAC (Step-Down)
- Current Rating: 3A to 5A
- After rectification: approximately ±33V DC
For 4Ω Speaker Load:
- Recommended Transformer: 28-0-28 VAC (Step-Down)
- Current Rating: Minimum 5A
- After rectification: approximately ±38V DC
Using an undersized transformer may result in early clipping, reduced bass control, or voltage sag at higher volume levels. Proper transformer selection directly affects output stability and achievable power.
Setup & Installation
- Verify transformer secondary voltage before connecting
- Use a proper bridge rectifier and adequate filter capacitors
- Double-check polarity before powering on
- Begin testing at low volume
- Use shielded cable for audio input
Correct grounding and short wiring paths help minimize hum and noise.
Thermal Management
The TDA7294 includes internal thermal protection, but an external heatsink is mandatory for safe operation.
- Mount the IC firmly to a properly sized aluminum heatsink
- Use thermal compound for better heat transfer
- Avoid enclosed spaces without airflow during high-power operation
Without proper cooling, the amplifier may enter thermal shutdown during extended high-volume use.
Audio Performance
- Clean sound reproduction at moderate listening levels
- Stable operation within recommended voltage range
- Suitable for subwoofer or dedicated mono channel use
- Low distortion when powered correctly
When paired with an appropriate transformer and speaker load, the amplifier delivers solid mono output consistent with typical Class-AB hi-fi designs.
Pros
- High power output in mono configuration
- Proven and widely used amplifier IC
- Suitable for subwoofer applications
- Integrated internal protection features
Cons
- Requires dual-rail transformer setup
- Not suitable for single-supply adapters
- Proper heatsink is mandatory
- Installation requires basic amplifier wiring knowledge
Who Should Consider This Board
This amplifier board is suitable for DIY audio builders, home hi-fi projects, and subwoofer amplification setups. It is best suited for users who are comfortable working with dual-rail linear power supplies and transformer-based systems.
Final Verdict
The TDA7294 100W Mono Amplifier Board provides dependable Class-AB mono amplification when installed with a correctly rated transformer and adequate cooling. It is not a beginner plug-and-play module, but for experienced DIY users, it offers strong and stable performance for mono audio applications.
