TDA7294 Stereo Amplifier Board Review – 100W + 100W

TDA7294 100W + 100W Stereo Amplifier Board – Review

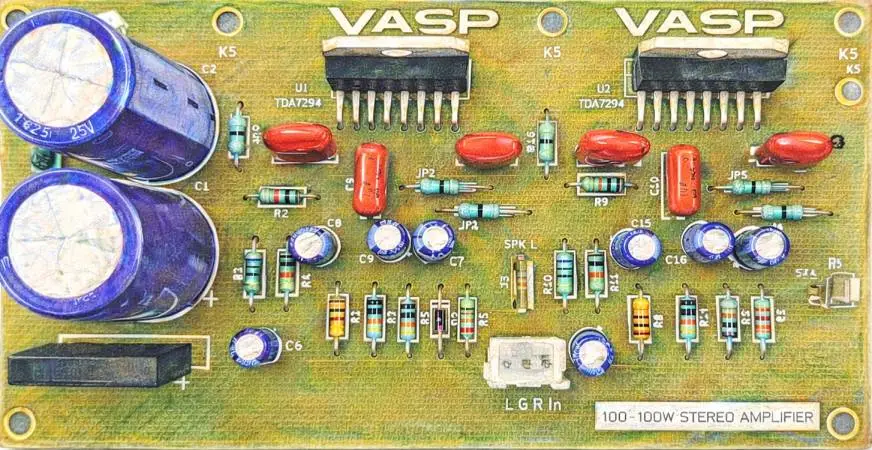

The TDA7294 stereo amplifier board is a high-power dual-channel audio amplifier designed for home audio and DIY Hi-Fi systems. It uses two TDA7294 DMOS amplifier ICs, each driving one channel, providing strong output with relatively simple circuit design.

In practical use, this board is widely used in stereo systems where good power output and reliable operation are required without the complexity of discrete transistor designs.

Core Design

The board is based on two TDA7294 Class-AB DMOS amplifier ICs:

• One IC per channel (left and right)
• Independent signal paths for stereo separation

DMOS output stages provide good current capability and built-in protection features, improving reliability.

Output Performance

• Up to 100W per channel under proper conditions

Actual output depends on supply voltage, speaker impedance, and thermal management.

Power Requirements

The board includes an onboard rectifier and filter section but does not provide regulated DC output.

• Requires external transformer: 24-0-24 VAC
• Minimum current rating: 5A
• Center-tapped transformer required

The onboard rectifier converts AC input into dual-rail DC for amplifier operation. Using an undersized transformer can lead to distortion and reduced performance.

Battery or direct DC operation is not supported.

Speaker Compatibility

The amplifier supports both 4Ω and 8Ω speakers. Lower impedance increases current draw and heat generation.

Thermal Performance

Each TDA7294 IC generates heat at higher output levels. Proper heatsinking is essential:

• Use a large aluminum heatsink
• Apply thermal compound
• Ensure airflow for cooling

The IC includes internal protection, but proper cooling is still required for continuous operation.

Signal and Grounding

Use shielded cables for audio input and maintain proper grounding to reduce noise. Keep signal wiring away from power and speaker lines.

A star-ground approach helps maintain clean audio performance.

Applications

• Home Hi-Fi stereo systems
• DIY audio amplifier projects
• Bookshelf and floor-standing speaker setups
• Workshop and listening-room audio systems

Overall Assessment

This amplifier board offers a good balance between power and simplicity. It is easier to implement than discrete transistor designs while still providing strong stereo output.

With proper transformer selection and adequate cooling, it delivers reliable performance for medium to high-power audio systems.

FAQ

Does this board include a complete power supply?

No. It includes a rectifier and filter section, but requires an external transformer for operation.

What transformer is required?

A 24-0-24 VAC center-tapped transformer rated at least 5A is recommended.

Can this amplifier run on battery or DC directly?

No. It is designed to work with AC input through a transformer and onboard rectifier.

What speakers can be used with this board?

Both 4Ω and 8Ω speakers are supported, depending on power supply and cooling conditions.

Is heatsinking required?

Yes. Proper heatsinking is necessary to handle heat generated at higher output levels.

Does the IC have protection features?

Yes. The TDA7294 includes internal thermal and short-circuit protection, but external speaker protection is recommended.
