Small Power Transistors Review Guide

Small Power Transistors – Practical Review (Part 1)

Focus: General Purpose vs High Voltage Small Signal Transistors

1. 2N2222A – Classic Small Signal Switching Transistor

What it is

The 2N2222A is a small signal NPN switching transistor designed for fast switching and moderate current handling.

Key Specs

• Collector-Emitter Voltage (VCEO): 50 V
• Collector-Base Voltage (VCBO): 75 V
• Collector Current (IC): 800 mA
• Power Dissipation: 500 mW (ambient), 1 W (case)
• Turn-On Time: 35 ns
• Turn-Off Time: 300 ns

Review Insight

• Strong point: High current capability for a small transistor
• Weak point: Limited voltage rating (not suitable for high voltage circuits)
• Very fast switching performance

Practical Use

• Relay drivers
• LED switching
• Low power amplifier stages

2. 2N3904 – General Purpose NPN (Low Power Workhorse)

What it is

A general-purpose NPN transistor designed for amplification and switching.

Key Specs

• Collector-Emitter Voltage (VCEO): 40 V
• Collector Current (IC): 200 mA
• Power Dissipation: 625 mW
• Transition Frequency (fT): 300 MHz

Review Insight

• Strong point: High frequency performance (ideal for signal circuits)
• Weak point: Lower current capability compared to 2N2222A
• Balanced device for both amplification and switching

Practical Use

• Audio preamplifiers
• Signal amplification
• Low power switching circuits

3. 2N3906 – PNP Complementary Pair

What it is

PNP counterpart of 2N3904, used in complementary circuit designs.

Key Specs

• Collector-Emitter Voltage (VCEO): 40 V
• Collector Current (IC): 200 mA
• Power Dissipation: 625 mW
• Transition Frequency (fT): 250 MHz

Review Insight

• Strong point: Ideal pairing with 2N3904 in push-pull circuits
• Slightly lower frequency than NPN counterpart
• Essential for symmetrical amplifier designs

Practical Use

• Audio amplifier stages
• Complementary switching circuits
• Signal inversion stages

4. 2N5401 – High Voltage PNP Transistor

What it is

A high voltage PNP transistor designed for general-purpose and high voltage applications.

Key Specs

• Collector-Emitter Voltage (VCEO): -150 V
• Collector-Base Voltage (VCBO): -160 V
• Collector Current (IC): -600 mA
• Power Dissipation: 625 mW (ambient), 1.5 W (case)

Review Insight

• Strong point: Very high voltage handling capability
• Not optimized for high-speed switching
• Suitable for voltage stage applications

Practical Use

• Audio amplifier voltage stages
• High voltage signal circuits
• SMPS feedback sections

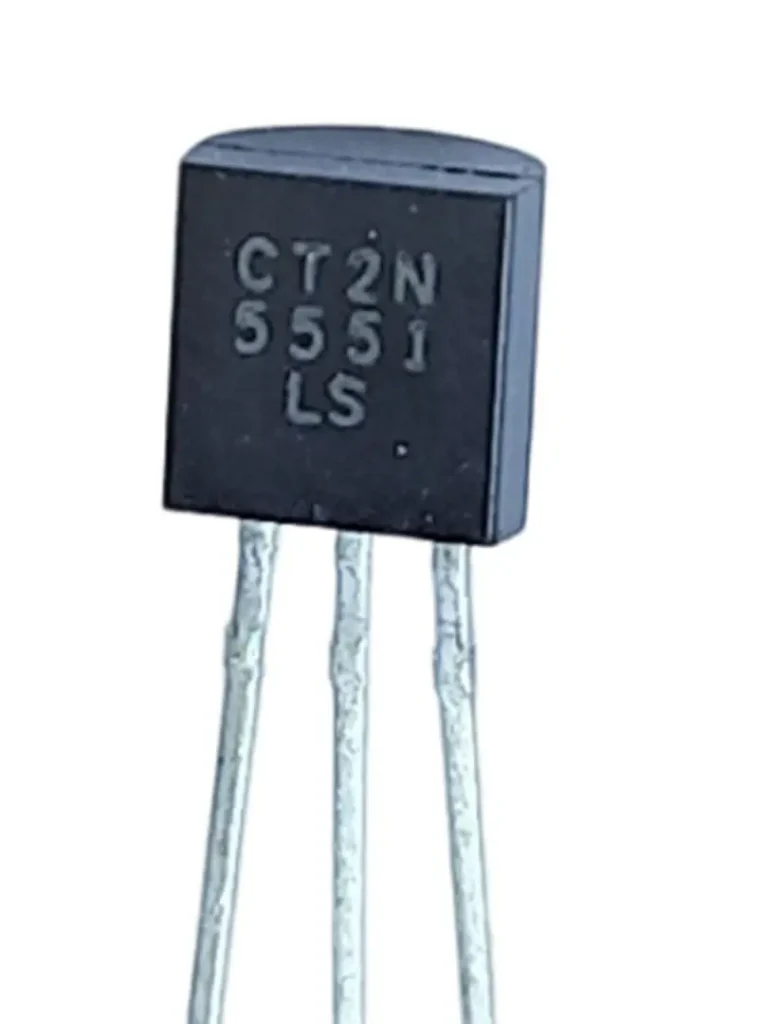

5. 2N5550 / 2N5551 – High Voltage NPN Transistor

Selected Variant

Highest VCE variant considered: 2N5551

Key Specs

• Collector-Emitter Voltage (VCEO): 160 V
• Collector-Base Voltage (VCBO): 180 V
• Collector Current (IC): 600 mA
• Power Dissation: 625 mW (ambient), 1.5 W (case)
• Transition Frequency (fT): 100–300 MHz

Review Insight

• Strong point: High voltage with good frequency response
• More versatile compared to 2N5401
• Widely used in driver and amplification stages

Practical Use

• Amplifier driver stages
• High voltage circuits
• Audio front-end stages

Part 1 Conclusion

Two Clear Categories

Low Voltage / High Frequency

• 2N3904 / 2N3906
• 2N2222A

Best suited for signal processing and low voltage switching.

High Voltage Small Power

• 2N5401 (PNP)
• 2N5551 (NPN)

Best suited for amplifier voltage stages and high voltage applications.

Key Practical Takeaway

• Do not interchange low voltage and high voltage transistors blindly
• Incorrect selection can lead to failure or instability
• Example: 2N3904 cannot replace 2N5551 in high voltage circuits

Small Power Transistors – Practical Review (Part 2)

Focus: Low Noise Audio Transistors & Complementary Pairs

1. 2SA970 – Low Noise High Voltage PNP (Audio Grade)

What it is

A low-noise PNP transistor specifically designed for audio amplifier input stages and sensitive signal amplification.

Key Specs

• VCEO: -120 V
• Collector Current (IC): -100 mA
• Power Dissipation: 300 mW
• hFE: 200 – 700
• Noise Figure: as low as 0.5 dB (typ.)
• Transition Frequency: 100 MHz

Review Insight

• Extremely low noise → ideal for preamp stages
• High voltage capability (−120V)
• High gain allows strong signal amplification

Practical Use

• Audio preamplifier input stages
• Equalizer amplifier first stage
• Low signal circuits

2. 2SC2240 – Low Noise NPN (Premium Audio Pair)

What it is

A low-noise NPN transistor designed for high-quality audio circuits.

Key Specs

• VCEO: 120 V
• Collector Current (IC): 100 mA
• Power Dissipation: 300 mW
• hFE: 200 – 700
• Noise Figure: as low as 0.5 dB
• Transition Frequency: 100 MHz

Review Insight

• Excellent for low-noise input stage
• High gain + low noise = clean signal

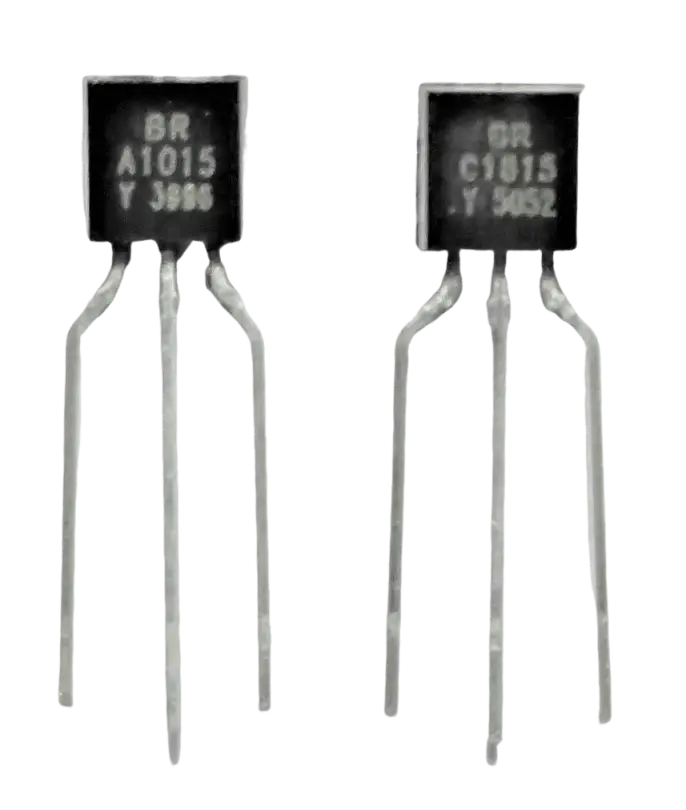

3. 2SA1015 – General Purpose PNP

Key Specs

• VCEO: -50 V
• Collector Current: -150 mA
• Power Dissipation: 400 mW
• hFE: up to 400
• Transition Frequency: 80 MHz

Review Insight

• Good for driver stages
• Balanced performance

4. 2SC1815 – General Purpose NPN

Key Specs

• VCEO: 50 V
• Collector Current: 150 mA
• Power Dissipation: 400 mW
• hFE: up to 700
• Transition Frequency: 80 MHz

Review Insight

• Widely used audio transistor
• Works well with 2SA1015

Small Power Transistors – Practical Review (Part 3)

Focus: BC547/548 (NPN), BC556/557/558 (PNP), High Voltage & Power Pairs

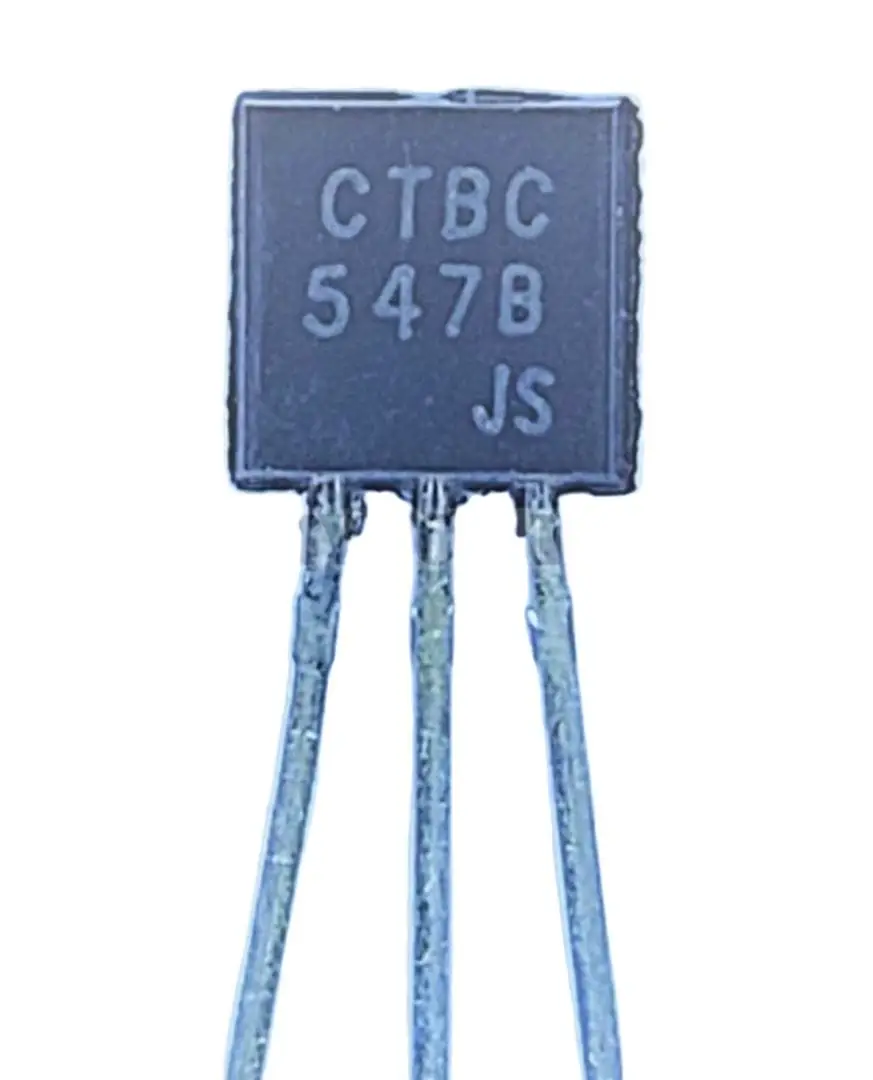

1. BC546 / BC547 / BC548 – NPN General Purpose Transistors

What it is

Widely used NPN small-signal transistors for amplification and switching applications.

Key Specs

• VCEO:
  • BC546 → 65 V
  • BC547 → 45 V
  • BC548 → 30 V
• Collector Current (IC): 100 mA
• Power Dissipation: 625 mW
• hFE Range:
  • A: ~110–220
  • B: ~200–450
  • C: ~420–800
• Transition Frequency: up to ~300 MHz

Important Behavior

• Gain increases with collector current then drops at higher current
• Low saturation voltage (~0.09–0.3 V typical)
• Low noise (~2 dB typical)

Review Insight

• BC547 = most commonly used general-purpose transistor
• “C” gain version preferred for amplification

2. BC556 / BC557 / BC558 – PNP Complementary Series

What it is

PNP counterparts of BC547 series used in complementary designs.

Key Specs

• VCEO:
  • BC556 → −65 V
  • BC557 → −45 V
  • BC558 → −30 V
• Collector Current (IC): −100 mA
• Power Dissipation: 625 mW
• hFE Range:
  • A: ~120+
  • B: ~180–460
  • C: up to ~800
• Transition Frequency: ~300 MHz

Review Insight

• Direct pair with BC547
• Used in push-pull circuits

3. MPSA42 / MPSA92 – High Voltage Pair

Key Specs

• VCEO: ±300 V
• Collector Current: 500 mA
• hFE: ~25–40

Review Insight

• Designed for high voltage circuits
• Not suitable for low-noise amplification

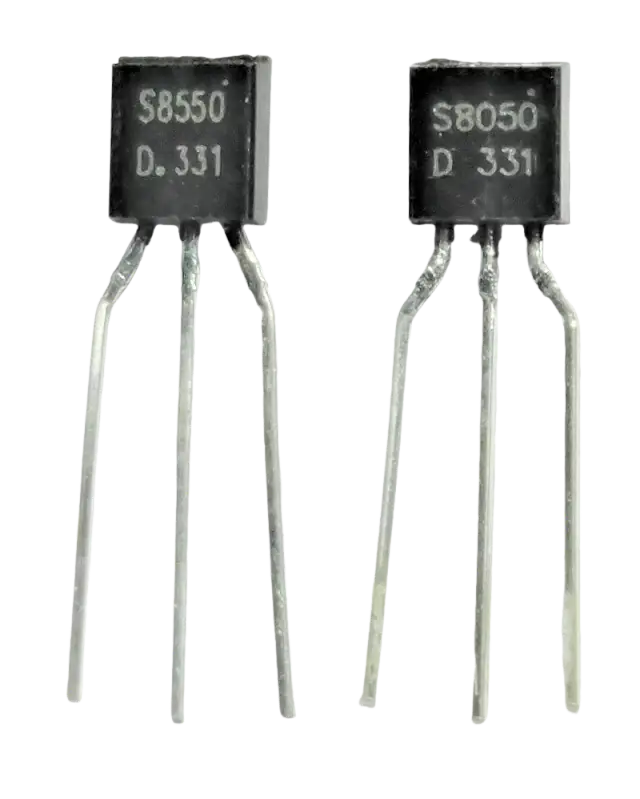

4. SS8050 / SS8550 – High Current Pair

Key Specs

• VCEO: ±25 V
• Collector Current: 1.5 A
• hFE: up to 300

Review Insight

• High current capability
• Used for load driving

Part 3 Conclusion

• Signal: BC547 / BC557
• High Voltage: MPSA42 / MPSA92
• High Current: SS8050 / SS8550

Small Power Transistors – Practical Review (Part 4)

Focus: Combined Comparison Table + Final Practical Selection Guide

Complete Transistor Comparison Table

Final Practical Conclusion

1. If your circuit is LOW SIGNAL / AUDIO INPUT

• Use: 2SC2240 / 2SA970
• Reason: Lowest noise + high gain

2. If your circuit is GENERAL PURPOSE

• Use: BC547 / BC557
• Reason: Easily available, stable, flexible

3. If your circuit needs HIGH VOLTAGE

• Use: 2N5551 / 2N5401 (moderate HV)
• Use: MPSA42 / MPSA92 (extreme HV)

4. If your circuit needs HIGH CURRENT

• Use: SS8050 / SS8550
• Reason: Can drive loads like speakers, relays

5. If your circuit is SWITCHING

• Use: 2N2222A
• Reason: Fast switching + high current capability

Final Rule (Most Important)

• Always select transistor based on:
• Voltage requirement (VCEO)
• Current requirement (IC)
• Application type (signal / driver / power)

Wrong selection = overheating, distortion, or instant failure.

Frequently Asked Questions (FAQ)

1. What are small power transistors used for?

Small power transistors are used for signal amplification, switching, and low to medium power control in electronic circuits such as audio amplifiers, relay drivers, and sensor circuits.

2. What is the difference between NPN and PNP transistors?

NPN transistors conduct when the base is positive relative to the emitter, while PNP transistors conduct when the base is negative relative to the emitter. They are used together in complementary circuits.

3. Which transistor is best for audio amplifier input stage?

Low-noise transistors such as 2SC2240 (NPN) and 2SA970 (PNP) are preferred for audio input stages because of their low noise and high gain characteristics.

4. Which transistor is best for general purpose use?

BC547 (NPN) and BC557 (PNP) are widely used general-purpose transistors suitable for amplification and switching in low power circuits.

5. Which transistor should be used for high voltage circuits?

For high voltage applications, transistors like 2N5551, 2N5401, MPSA42, and MPSA92 are used depending on the required voltage level.

6. Which transistor is suitable for high current applications?

SS8050 (NPN) and SS8550 (PNP) are suitable for high current applications such as driving relays, speakers, and other loads.

7. Can BC547 replace 2N2222?

BC547 can replace 2N2222 in low current circuits, but 2N2222 is preferred where higher current handling is required.

8. What happens if a wrong transistor is used?

Using the wrong transistor can lead to overheating, circuit instability, distortion, or permanent failure due to exceeding voltage or current limits.
