Diodes Review: Types, Specifications, and Applications Explained
Diodes – Complete Technical Review and Application Guide
Diodes are fundamental semiconductor devices that allow current to flow in one direction while blocking it in the opposite direction. They are widely used in power supplies, signal processing, protection circuits, and switching applications.
This review compiles datasheet-based technical information across multiple diode types including rectifier diodes, fast recovery diodes, ultrafast diodes, Schottky diodes, Zener diodes, signal diodes, and LEDs.
What is a Diode
A diode is a two-terminal semiconductor device formed by a PN junction. It conducts current when forward biased and blocks current when reverse biased.
- Forward bias → current flows
- Reverse bias → current blocked (except leakage)
Types of Diodes Covered
- Standard Rectifier Diodes
- Fast Recovery Diodes
- Ultrafast Diodes
- Schottky Diodes
- Zener Diodes
- Signal Switching Diodes
- Light Emitting Diodes (LEDs)

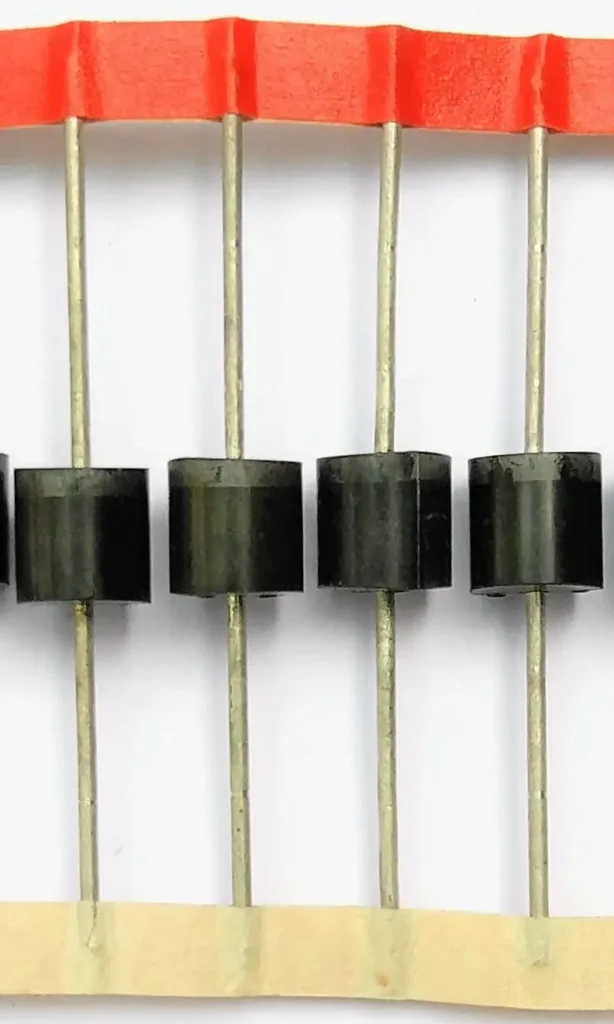

1. Standard Rectifier Diodes
These diodes are used for AC to DC conversion in power supply circuits.
Common Series
- 1N4001 – 1N4007
- 1N5400 – 1N5408
- 10A05 – 10A10
Key Technical Characteristics
- Voltage range: 50V to 1000V
- Current rating: 1A, 3A, 10A
- Forward voltage drop: ~1.0V to 1.1V
- High surge current capability
Applications
- Power supply rectification
- Battery chargers
- AC adapters
2. Fast Recovery Diodes
Designed for faster switching compared to standard rectifier diodes.
Example Series
- FR301 – FR307
Key Technical Characteristics
- Current: ~3A
- Reverse voltage: up to 1000V
- Reverse recovery time: up to 500ns
- Forward voltage: ~1.3V
Applications
- Switching power supplies
- High-frequency rectification
3. Ultrafast Diodes
These diodes are optimized for very high-speed switching with reduced losses and noise.
Example Series
- MUR1540 / MUR1560
Key Technical Characteristics
- Current: up to 15A
- Voltage: up to 600V
- Reverse recovery time: <55ns
- Soft recovery characteristics
Applications
- Switching power supplies
- Inverters
- Power switching circuits
4. Fast Rectifier Diodes (UF Series)
These diodes provide faster recovery than standard rectifiers and are widely used in switching circuits.
Example Series
- UF4001 – UF4007
- UF5400 – UF5408
Key Technical Characteristics
- Reverse voltage: 50V to 1000V
- Recovery time: 50ns to 75ns
- Current: 1A and 3A variants
Applications
- High-frequency rectification
- Switching regulators
5. Schottky Diodes
Schottky diodes are known for their very low forward voltage drop and extremely fast switching speed.
Example Series
- 1N5817
- MBR20100CT
Key Technical Characteristics
- Low forward voltage (~0.3V to 0.5V)
- Very fast switching
- Higher leakage current compared to PN diodes
Applications
- DC-DC converters
- Reverse polarity protection
- High-efficiency power circuits
6. Zener Diodes
Zener diodes are designed to operate in reverse breakdown and maintain a stable voltage.
Example Series
- 1N47xx series
Key Technical Characteristics
- Fixed breakdown voltage
- Typical power ratings: 500mW, 1W
- Operates in reverse bias
Applications
- Voltage regulation
- Reference circuits
- Overvoltage protection
7. Signal Diodes (Switching)
Signal diodes are used in low-current, high-speed switching applications.
Example
- 1N4148
Key Technical Characteristics
- Very fast switching speed
- Low current handling
- Compact size
Applications
- Logic circuits
- Signal clipping
- Wave shaping
8. Light Emitting Diodes (LEDs)
LEDs are semiconductor diodes that emit light when forward biased.
Example
- 5mm Diffused LED
Key Technical Characteristics
- Forward voltage: ~3.0V to 3.3V
- Operating current: ~20mA
- Low power consumption
- Long operational life
Applications
- Status indicators
- Displays
- General lighting
Comparison Summary
| Type | Speed | Voltage Drop | Current | Primary Use |
|---|---|---|---|---|
| Rectifier | Slow | High (~1V) | High | Power supplies |
| Fast | Medium | Medium | Medium | SMPS |
| Ultrafast | Very fast | Medium | High | High-frequency power |
| Schottky | Very fast | Low | Medium | Efficiency circuits |
| Zener | N/A | Fixed | Low | Voltage regulation |
| Signal | Very fast | Low | Low | Logic circuits |
| LED | N/A | ~2–3V | Low | Lighting |
Key Technical Observations
- Higher current diodes require proper heat dissipation
- Reverse recovery time impacts switching efficiency
- Surge current ratings are significantly higher than continuous ratings
- Leakage current increases with temperature
Applications Overview
- Power supplies and rectification
- Switching regulators
- Protection circuits
- Signal processing
- Lighting systems
- Voltage regulation
Final Verdict
Diodes are a broad category of semiconductor devices, each optimized for specific functions:
- Rectifier diodes → power conversion
- Fast and ultrafast diodes → switching efficiency
- Schottky diodes → low loss applications
- Zener diodes → voltage regulation
- Signal diodes → logic and switching
- LEDs → light emission
Proper selection depends on voltage rating, current capacity, switching speed, and application requirements.
Frequently Asked Questions
Which diode is best for power supply circuits?
Rectifier diodes such as the 1N4007 or 1N5408 are commonly used in power supply circuits due to their high voltage and current handling capability.
What is the difference between fast and ultrafast diodes?
Fast diodes have moderate reverse recovery time, while ultrafast diodes have very low recovery time (typically below 100ns), making them suitable for high-frequency switching applications.
Why are Schottky diodes used in power circuits?
Schottky diodes are used because they have a low forward voltage drop and very fast switching speed, which improves efficiency in power circuits.
What is the function of a Zener diode?
A Zener diode is used for voltage regulation by maintaining a constant voltage across its terminals when operating in reverse breakdown.
Where are signal diodes used?
Signal diodes like the 1N4148 are used in low-current, high-speed switching applications such as logic circuits and signal processing.
Are LEDs considered diodes?
Yes, LEDs are light-emitting diodes that produce light when current flows through them in the forward direction.
