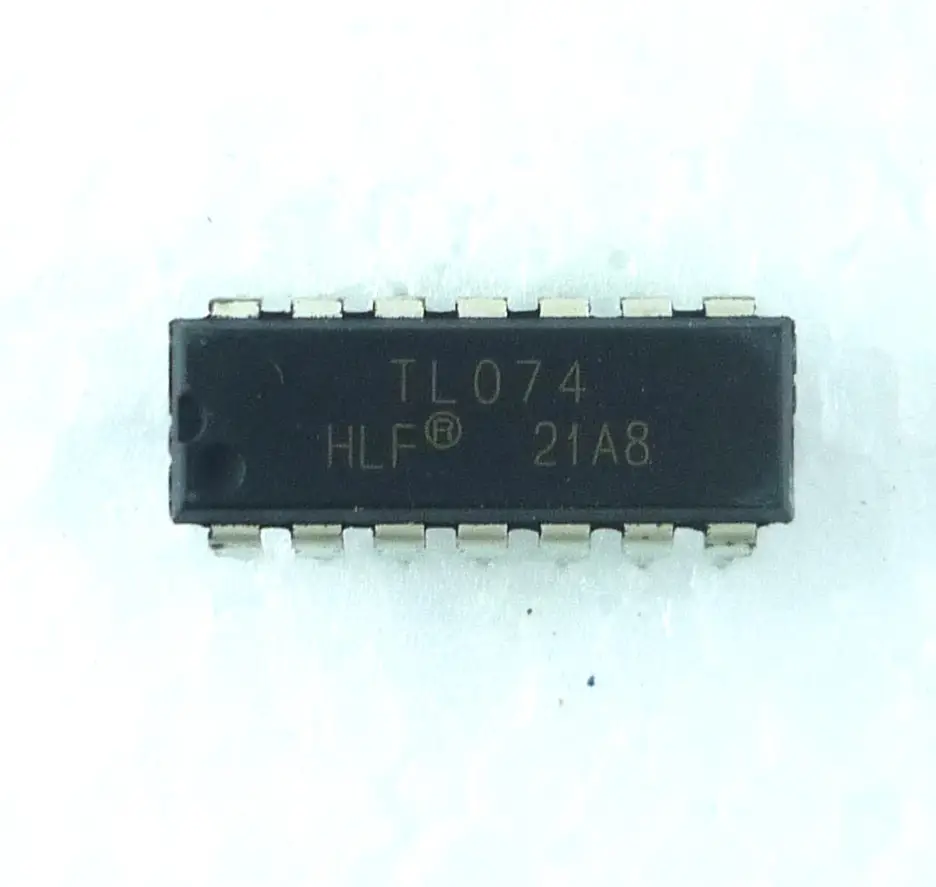

TL074 Quad JFET Input Operational Amplifier IC DIP-14 Package

TL074 Quad JFET-Input Operational Amplifier (DIP-14)

The TL074 is a quad operational amplifier with JFET inputs, designed for low-noise and high-speed analog signal processing applications.

Configuration:

• Quad op-amp (4 independent amplifiers in a single package)
• JFET-input stage for high input impedance and low input bias current

Electrical Characteristics:

• Supply voltage range: ±5 V to ±18 V (dual supply)
• High input impedance
• Very low input bias current
• Low noise performance
• High slew rate for fast signal response
• Low distortion characteristics
• Unity-gain stable

Package:

• PDIP-14 (DIP-14) through-hole package

Construction:

• Suitable for through-hole PCB designs

Intended Use:

• Audio pre-amplifiers and tone control circuits
• Active filters and signal conditioning circuits
• Instrumentation and analog signal processing
• General-purpose analog circuit design
