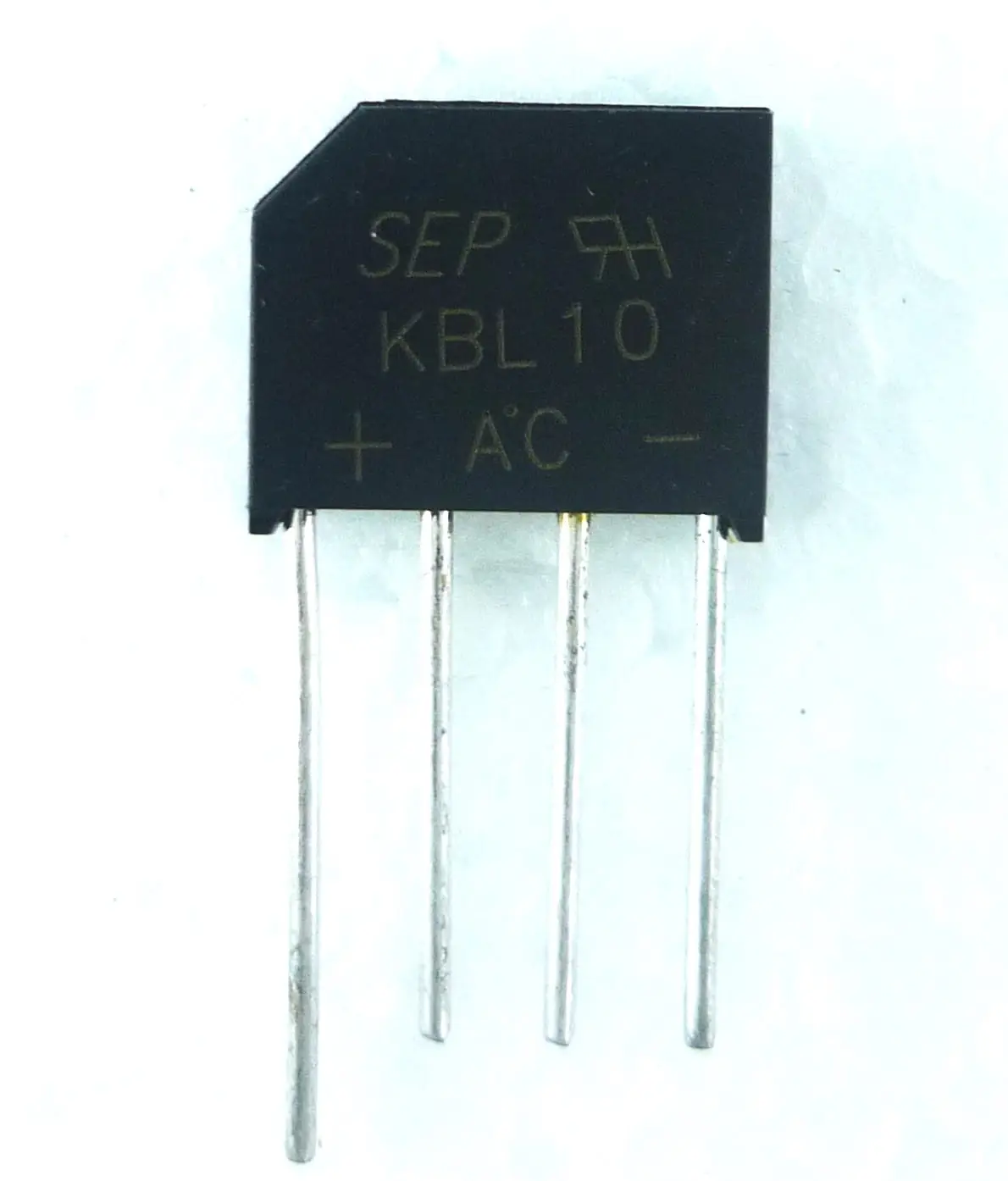

KBL10 bridge rectifier designed for efficient AC to DC conversion in electronic circuits. This PCB mount rectifier supports up to 1000 V peak reverse voltage and 4 A average forward current, making it suitable for medium power applications. It features low forward voltage drop, high reliability, and strong surge current capability, ensuring stable and efficient performance in power supply systems.
Configuration:
Bridge rectifier
4 pin configuration
PCB mount type
Electrical Characteristics:
Peak reverse voltage: 1000 V
Average forward current: 4 A
Low forward voltage drop
High surge current capability
Package:
KBL type bridge rectifier package
Construction:
Designed for high reliability operation
Suitable for PCB mounting
Configuration Notes:
Provides full wave rectification
Compact design for PCB integration
Intended Use:
AC to DC conversion
Power supply circuits
Battery chargers
General-purpose rectification applications
