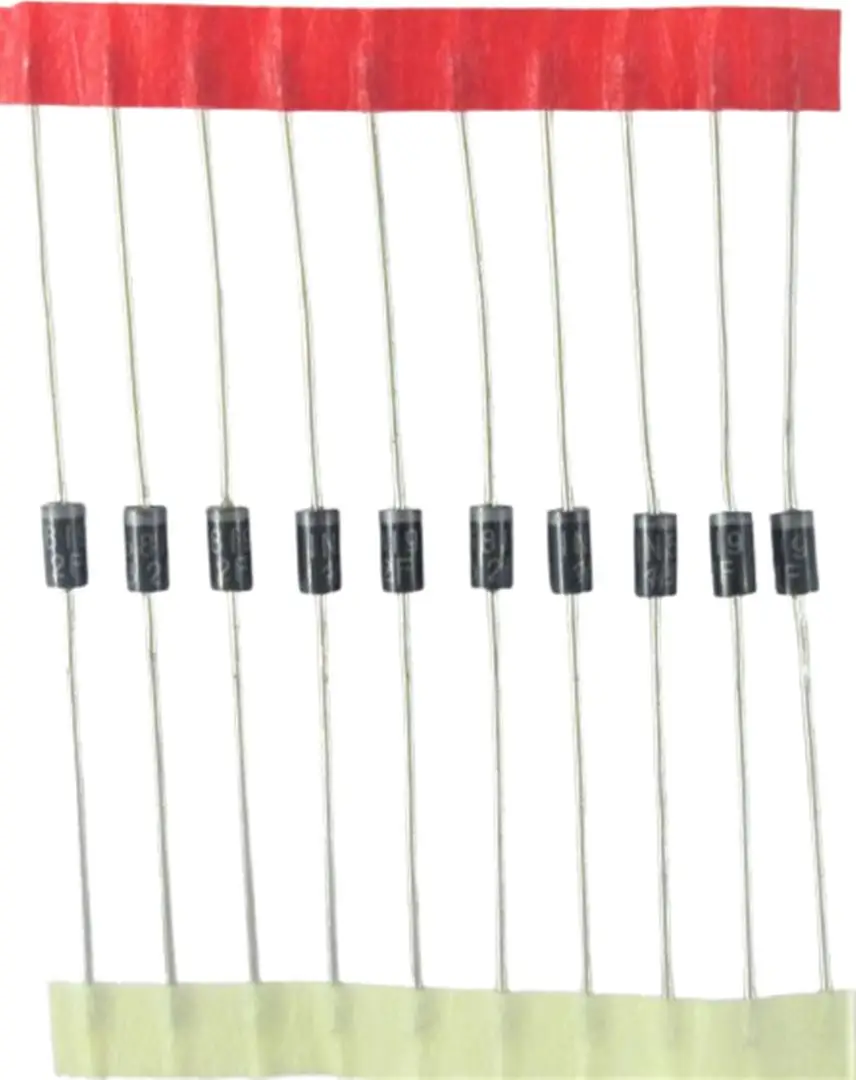

1N5819 Schottky Barrier Rectifier Diode (DO-41, Pack of 10)
The 1N5819 is a Schottky barrier rectifier diode designed for low-voltage, high-frequency rectification applications, commonly used in DC-DC converters and power supply circuits.
Configuration:
Schottky barrier rectifier diode
Silicon construction
Electrical Characteristics:
Maximum repetitive peak reverse voltage (VRRM): 40 V
Average forward rectified current (IF): 1 A
Low forward voltage drop for improved efficiency
Fast switching performance
Package:
DO-41 (DO-204AL) axial lead through-hole package
Construction:
Designed for PCB mounting with axial leads
Suitable for high-frequency and low-loss applications
Supplied as a pack of 10 diodes
Configuration Notes:
Low forward voltage reduces power loss
Fast switching suitable for high-frequency circuits
Efficient performance in low-voltage rectification
