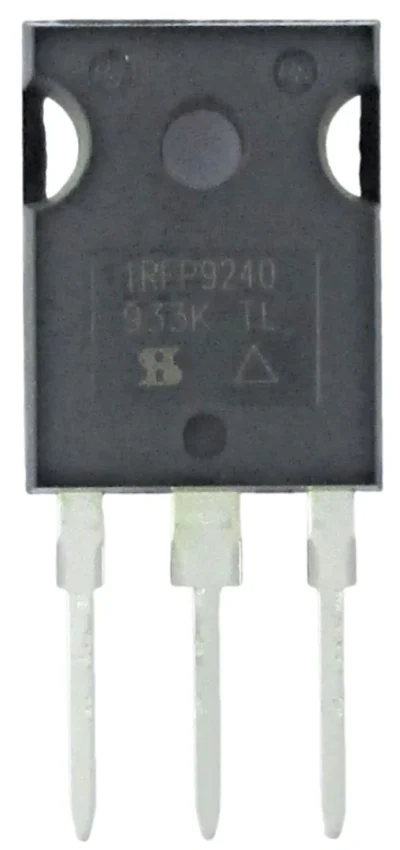

The IRFP9240 is a P-channel power MOSFET designed for high-voltage switching applications, commonly used in complementary designs and high-power circuits.
Configuration:
P-channel enhancement mode MOSFET
Silicon construction
Electrical Characteristics:
Drain-source voltage (VDS): -200 V
Continuous drain current (ID): -12 A (at 25 °C)
On-state resistance (RDS(on)): 0.50 Ω
Power dissipation: 150 W
Fast switching performance
Repetitive avalanche rated
Package:
TO-247AC through-hole package
Construction:
Designed for PCB mounting with heatsink support
Provides efficient thermal performance for high-power operation
Configuration Notes:
Suitable for high-voltage, moderate-current switching applications
Commonly used in complementary MOSFET designs
Requires proper gate drive for efficient operation
Heatsinking required for high power operation
Intended Use:
Audio amplifier circuits
Power supply applications
Inverter and power control circuits
High-voltage switching applications
