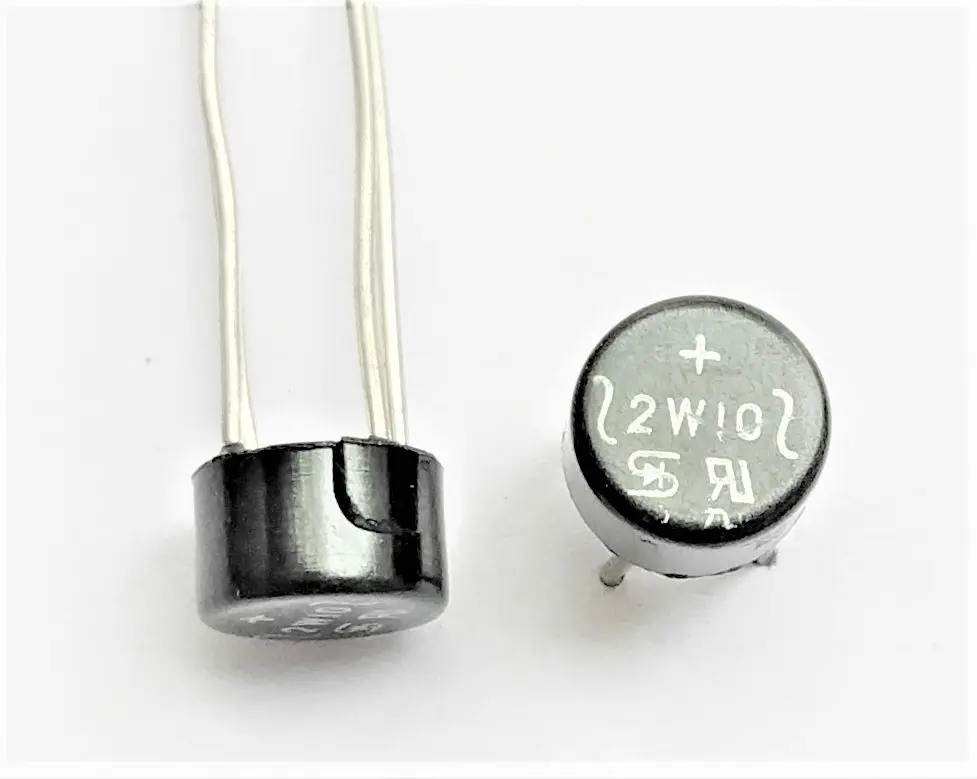

The 2W10 is a single-phase bridge rectifier designed for AC to DC conversion in power supply circuits, suitable for higher current applications compared to standard 1A rectifiers.
Configuration:
Single-phase full bridge rectifier
Silicon diode construction
Electrical Characteristics:
Peak repetitive reverse voltage (VRRM): 1000 V
Average forward current (IF): 2 A
Surge forward current (IFSM): up to 60 A
Forward voltage drop (VF): approximately 1.1 V per diode at 2 A
Package:
WOB through-hole package
Construction:
Molded plastic body with silver-plated copper leads
Designed for PCB mounting with flexible orientation
Wide operating temperature range from −55 °C to +150 °C
Configuration Notes:
Suitable for AC to DC rectification in medium-current circuits
Higher current handling than standard 1A rectifiers
Capable of handling surge conditions in power applications
Intended Use:
Power supply circuits
AC to DC adapters
Battery charging circuits
General rectification applications
