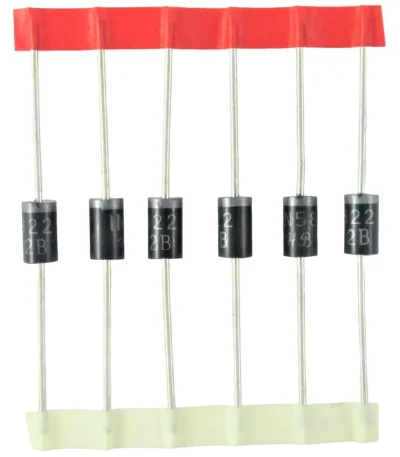

1N5822 Schottky Barrier Rectifier Diode (DO-201AD, Pack of 10)
The 1N5822 is a Schottky barrier rectifier diode designed for low-voltage, high-frequency rectification applications, commonly used in DC-DC converters and power supply circuits.
Configuration:
Schottky barrier rectifier diode
Silicon construction
Electrical Characteristics:
Maximum repetitive peak reverse voltage (VRRM): 40 V
Average forward rectified current (IF): 3 A
Low forward voltage drop for improved efficiency
Extremely fast switching performance
High forward surge current capability
Package:
DO-201AD axial lead through-hole package
Construction:
Designed for PCB mounting with axial leads
Suitable for high-frequency and low-loss applications
Supplied as a pack of 10 diodes
Configuration Notes:
Low forward voltage reduces power loss
Fast switching suitable for high-frequency circuits
Efficient performance in low-voltage rectification
