₹40.00Original price was: ₹40.00.₹29.00Current price is: ₹29.00.

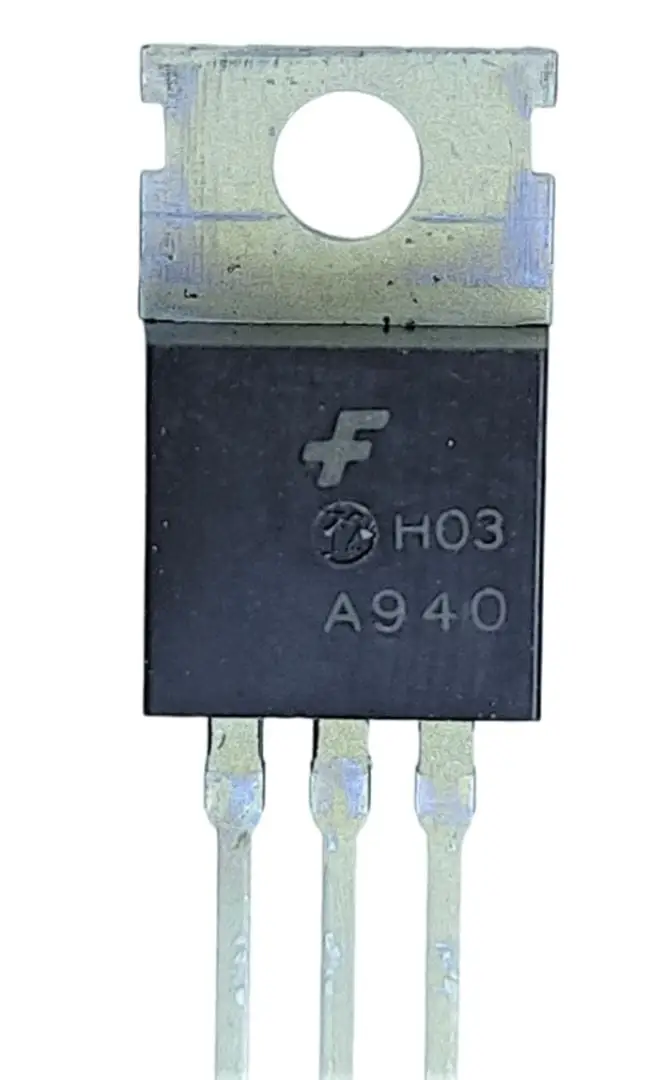

• 2SA940 PNP power amplifier transistor
• Collector-emitter voltage: -150 V
• Maximum collector current: -1.5 A
• Power dissipation: 25 W
• DC gain (hFE): 40–140
• TO-220 through-hole package
• Suitable for amplifier driver stages
• Complementary pair: 2SC2073
The 2SA940 is a PNP power transistor designed for audio amplifier driver stage applications, suitable for medium-power amplification circuits.
Configuration:
PNP bipolar junction transistor
Silicon construction
Electrical Characteristics:
Collector-emitter voltage (VCEO): -150 V (min)
Maximum collector current (IC): -1.5 A
Power dissipation: 25 W
DC current gain (hFE): 40 to 140 (at IC = -500 mA)
Package:
TO-220 through-hole package
Construction:
Designed for PCB mounting with heatsink support
Suitable for medium-power amplifier circuits
Configuration Notes:
Suitable for driver stages in audio amplifiers
Complementary NPN transistor: 2SC2073
Requires proper thermal management for reliable operation
