₹40.00Original price was: ₹40.00.₹29.00Current price is: ₹29.00.

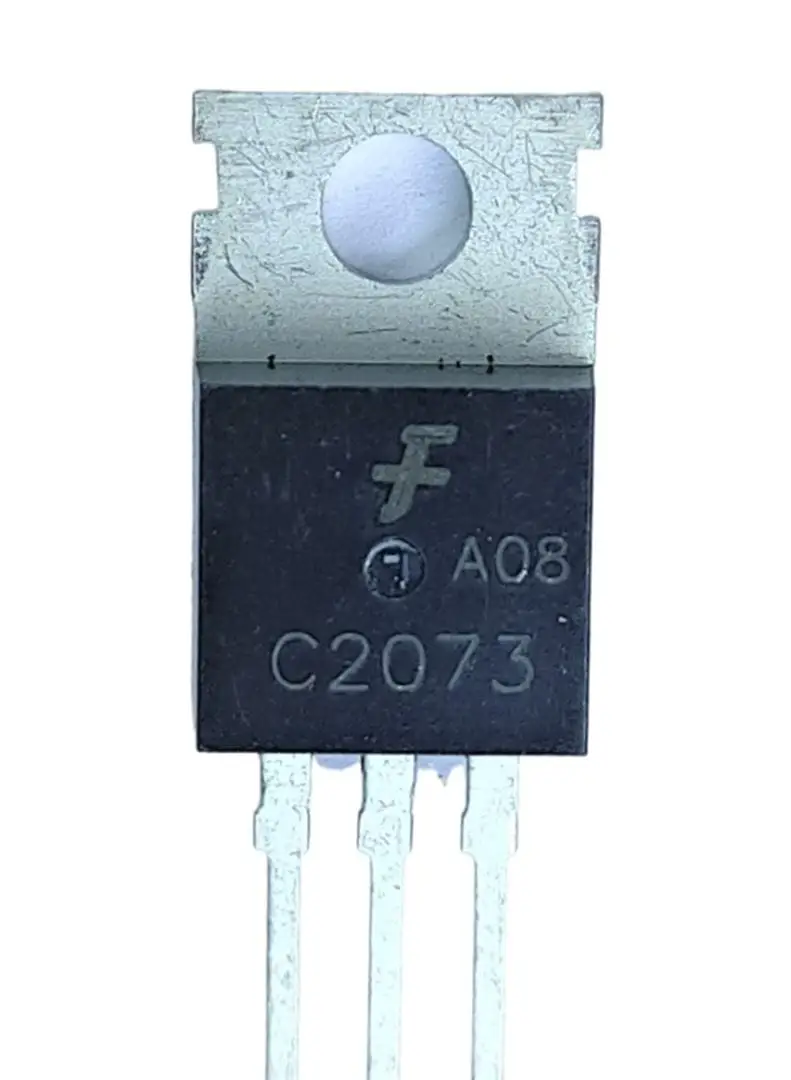

• 2SC2073 NPN power amplifier transistor
• Collector-emitter voltage: 150 V
• Maximum collector current: 1.5 A
• Power dissipation: 25 W
• DC gain (hFE): 40–140
• TO-220 through-hole package
• Suitable for amplifier driver stages
• Complementary pair: 2SA940
The 2SC2073 is an NPN power transistor designed for audio amplifier driver stage applications, suitable for medium-power amplification circuits.
Configuration:
NPN bipolar junction transistor
Silicon construction
Electrical Characteristics:
Collector-emitter voltage (VCEO): 150 V (min)
Maximum collector current (IC): 1.5 A
Power dissipation: 25 W
DC current gain (hFE): 40 to 140 (at IC = 500 mA)
Package:
TO-220 through-hole package
Construction:
Designed for PCB mounting with heatsink support
Suitable for medium-power amplifier circuits
Configuration Notes:
Suitable for driver stages in audio amplifiers
Complementary PNP transistor: 2SA940
Requires proper thermal management for reliable operation
