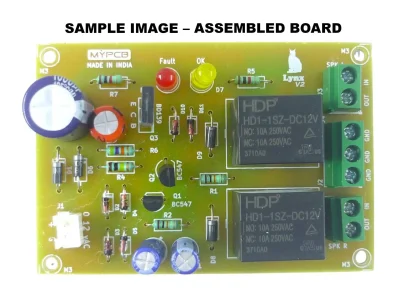

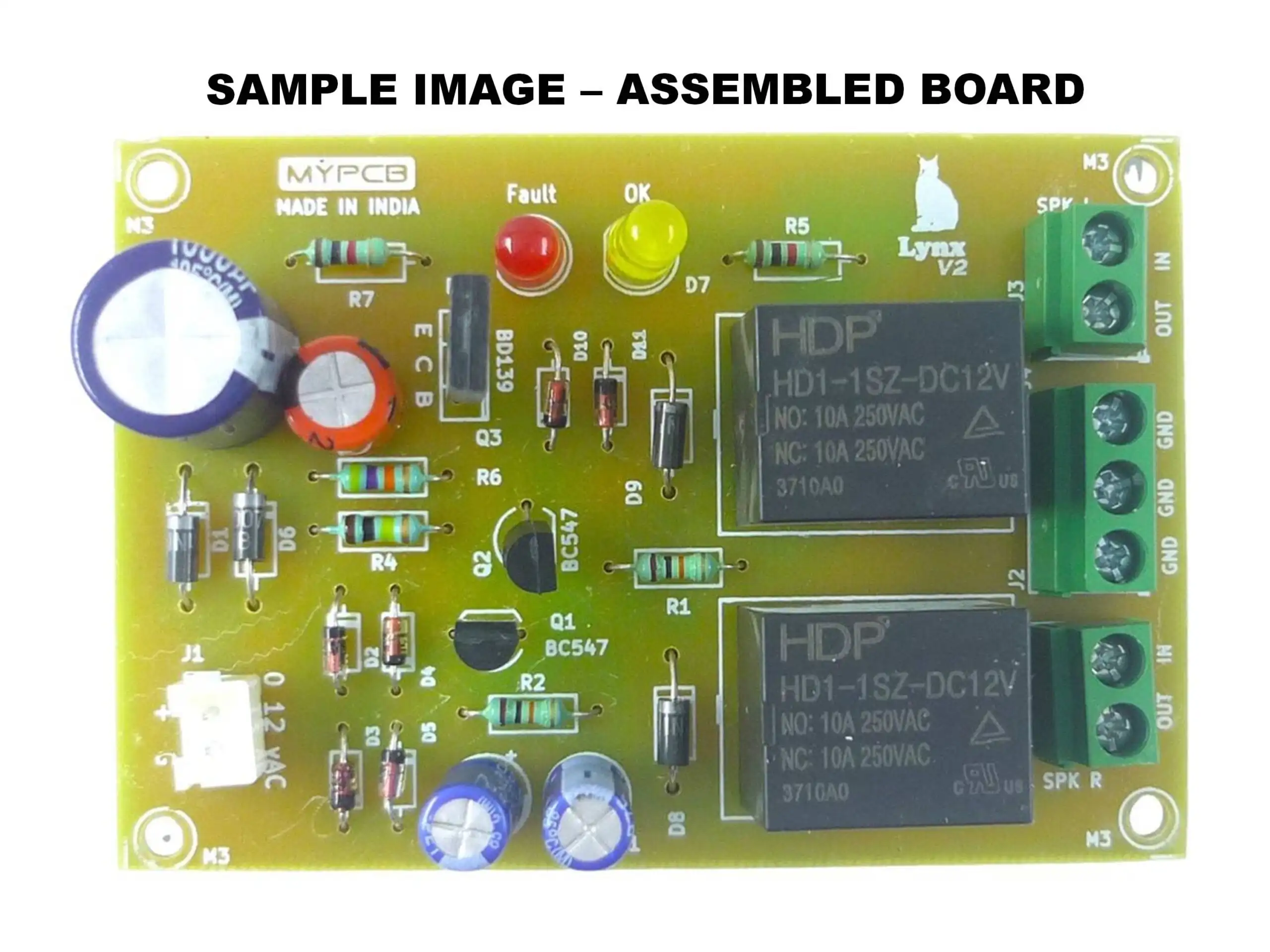

12 V 10 A Stereo Speaker Protection PCB Board (Bare PCB)
This PCB is designed for building a stereo speaker protection circuit with delay and DC fault detection. Performance depends on components used and assembly quality.
Working Voltage:
- Input supply: 0 to 12 V AC
- Onboard rectifier and regulator support operation with input up to 30 V AC
Current Capacity:
- Relay switching current: up to 10 A (using standard “sugar cube” relay, depends on relay used)
Protection Features:
- Turn-on delay: approximately 1 to 2 seconds to prevent speaker damage from power-on/off transients
- DC detection: relay remains OFF if DC voltage above approximately 2 V is present at speaker output
- Fault condition detection prevents relay activation to protect speakers
Channel Support:
- Dual-channel protection for stereo amplifier outputs
Indicators:
- LED indicators for:
- Power/OK status
- Fault condition
Construction:

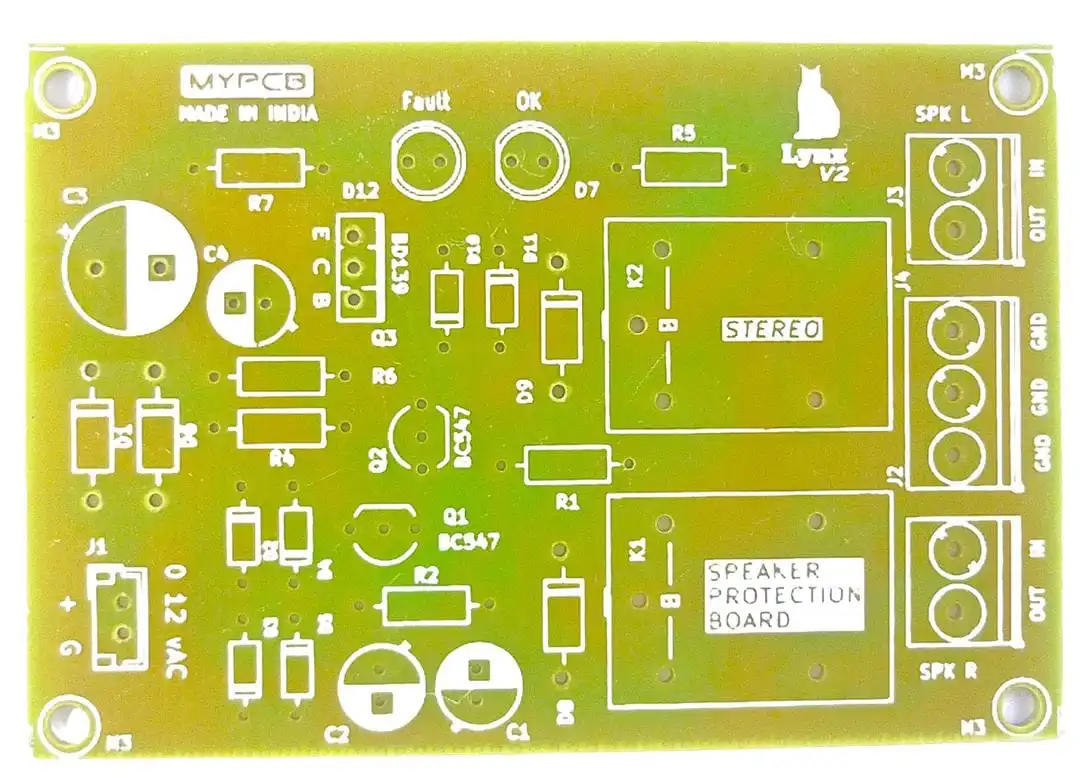

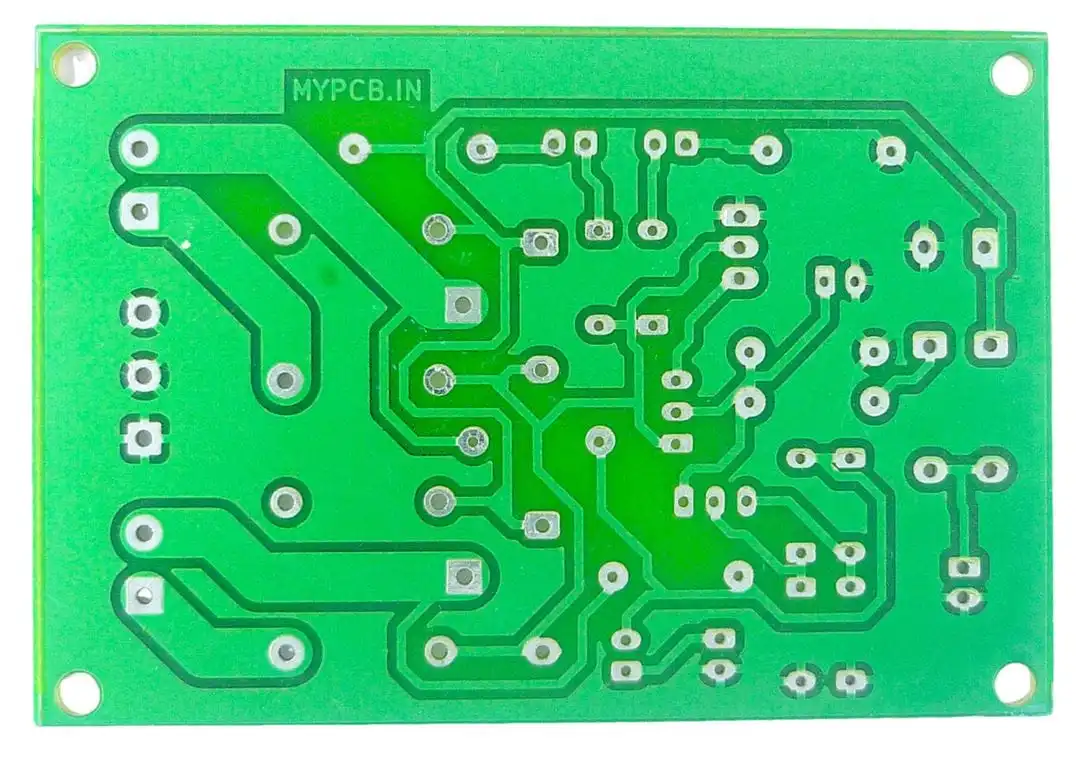

- Bare PCB (components not included)
- Designed for through-hole components
- Components are commonly available
Configuration:
- Requires appropriate relay, components, and assembly
- Designed to be connected between amplifier output and speaker load
- Final performance depends on component selection and build quality
Intended Use:
- Speaker protection in stereo audio amplifier systems
- Prevention of speaker damage due to DC offset and switching transients
- Suitable for home audio systems and DIY audio projects
