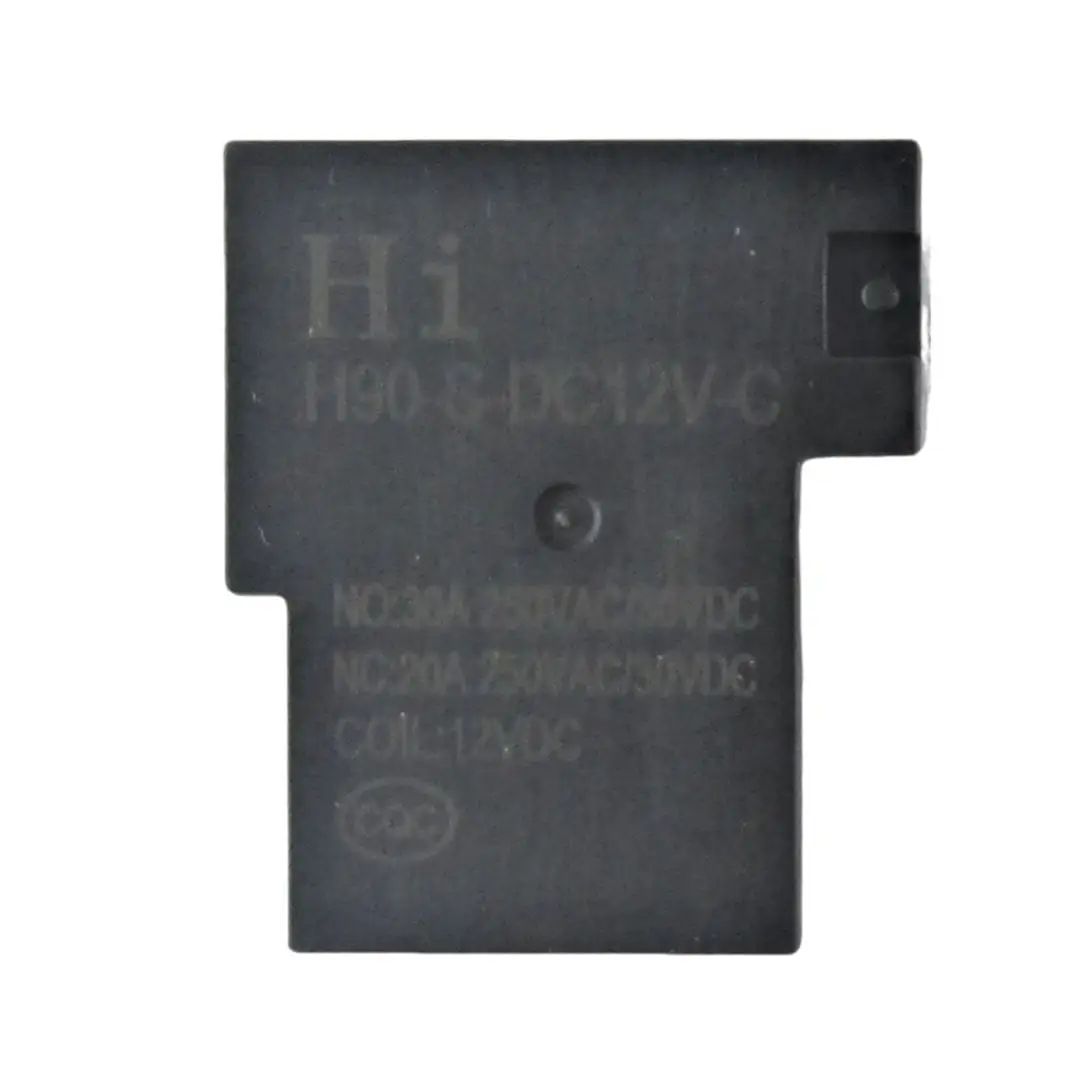

12 V 30 A SPDT PCB power relay (L90 / H90 type) designed for high current switching applications in electrical and electronic systems. This single pole double throw (SPDT) relay supports both normally open (NO) and normally closed (NC) contacts, making it suitable for control and power switching circuits. It features a compact PCB mount design with high contact capacity and reliable operation for demanding applications.
Configuration:
Single pole double throw (SPDT) relay (1C contact)
PCB mount type
Compact cube form factor
Electrical Characteristics:
Rated coil voltage: 12 V DC
Contact rating: up to 30 A
Maximum switching voltage: up to 240 VAC / 28 VDC
Coil resistance: ~155 Ω
Coil power consumption: ~0.93 W
Pull-in voltage: ≤80% of rated voltage
Drop-out voltage: ≥5% of rated voltage
Package:
PCB mount power relay
Construction:
Silver alloy contacts for high current handling
Available in open or sealed type
Durable and reliable switching mechanism
Configuration Notes:
Supports NO and NC switching configurations
Designed for high current load control
Suitable for PCB mounting applications
Intended Use:
HVAC systems
Home appliances
Automotive control circuits
Power switching and control systems
DIY and industrial applications
