₹10.00Original price was: ₹10.00.₹7.90Current price is: ₹7.90.

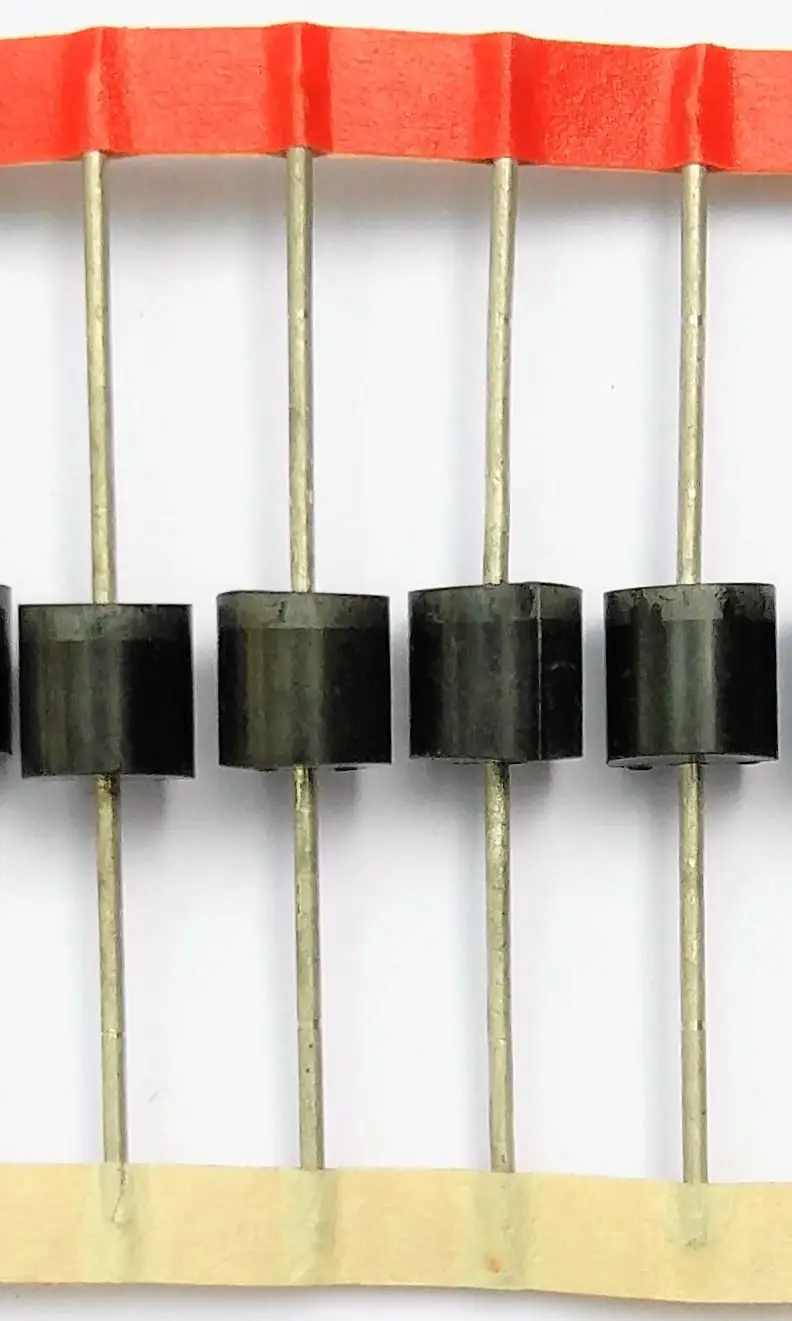

• 10A10 rectifier diode
• Maximum voltage: 1000 V
• Maximum current: 10 A
• Peak surge current: 400 A
• Forward voltage drop: ~1 V
• M-6 through-hole package
• Suitable for high-current rectification applications
The 10A10 is a high-current rectifier diode designed for AC to DC conversion in high-power supply and general-purpose applications.
Configuration:
Rectifier diode
Silicon construction
Electrical Characteristics:
Maximum forward rectified current (IF): 10 A
Maximum working voltage (VRRM): 1000 V
Peak forward surge current (IFSM): 400 A
Forward voltage drop (VF): approximately 1 V
Package:
M-6 axial lead through-hole package
Construction:
Durable epoxy body with axial leads
Designed for PCB mounting and high-current applications
Configuration Notes:
Suitable for high-current rectification
High voltage capability for power circuits
Reliable performance in demanding applications
Intended Use:
Power supply rectification
AC to DC conversion circuits
Battery charging circuits
General-purpose high-current applications
