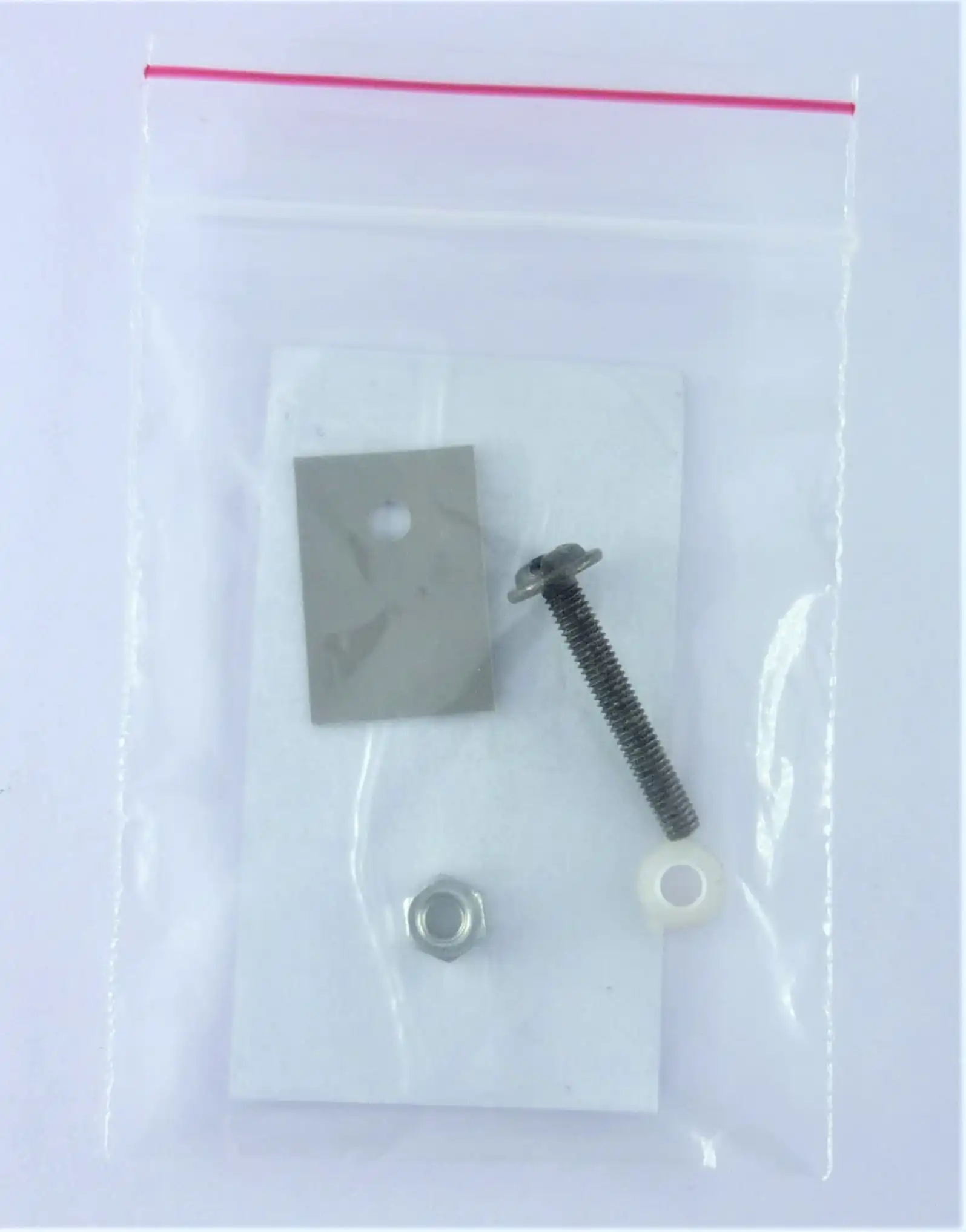

TO-220 heat sink fitting kit designed for mounting power devices such as TDA2030, TIP41, and similar TO-220 package components onto heat sinks. This kit provides proper mechanical fastening along with electrical insulation, ensuring safe and efficient heat dissipation. It includes a silicone pad for thermal transfer, an M3 nut and bolt set for secure mounting, and a plastic sleeve washer to prevent electrical contact with the heat sink.
Configuration:
Heat sink mounting kit for TO-220 devices
Compatible with TDA2030, TIP41 and similar packages
Electrical Characteristics:
Provides electrical isolation between device and heat sink
Ensures efficient thermal conduction
Package:
Complete kit with mounting hardware and insulation components
Construction:
Silicone thermal pad for heat transfer
M3 nut and bolt set for secure fastening
Plastic sleeve washer for insulation
Configuration Notes:
Prevents short circuit between device tab and heat sink
Ensures stable and reliable mounting
Intended Use:
Mounting TO-220 transistors and ICs
Audio amplifier assembly
Power electronics heat management
DIY and repair applications
