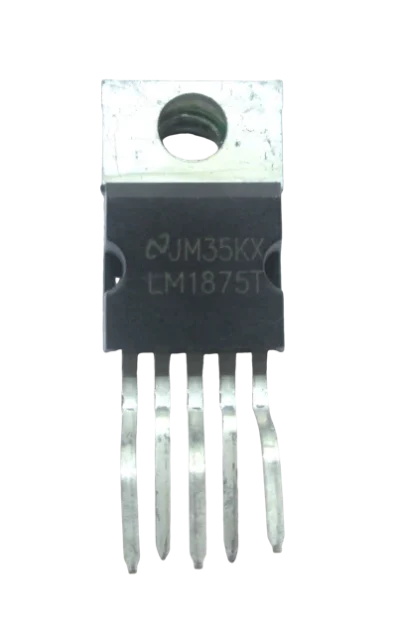

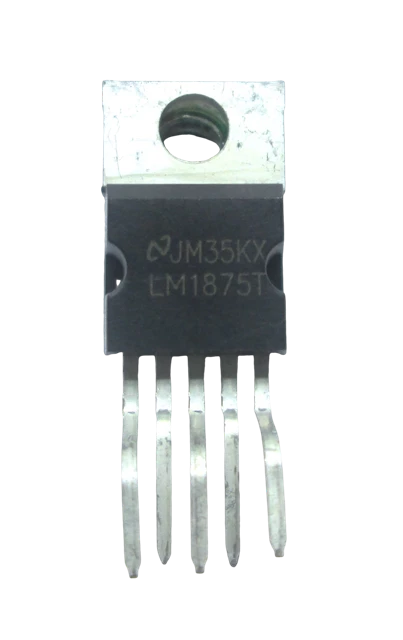

The LM1875 is a monolithic audio power amplifier IC designed for high-quality mono audio amplification, suitable for Hi-Fi and general audio applications.
Configuration:
Mono audio power amplifier IC
5-pin through-hole package
Electrical Characteristics:
Output power: up to 30 W
Signal-to-noise ratio: approximately 90 dB
Total harmonic distortion: 0.015% (at 1 kHz, 20 W)
Power bandwidth: up to 70 kHz
Supply voltage range: 16 V to 60 V
Output current capability: up to 4 A
Package:
5-pin through-hole package
Construction:
Integrated amplifier design for stable audio performance
Suitable for PCB mounting with heatsink support
Configuration Notes:
Low distortion and wide bandwidth for high-fidelity audio
Built-in AC and DC short-circuit protection
Thermal protection with internal circuitry
Requires proper heatsinking for high power operation
