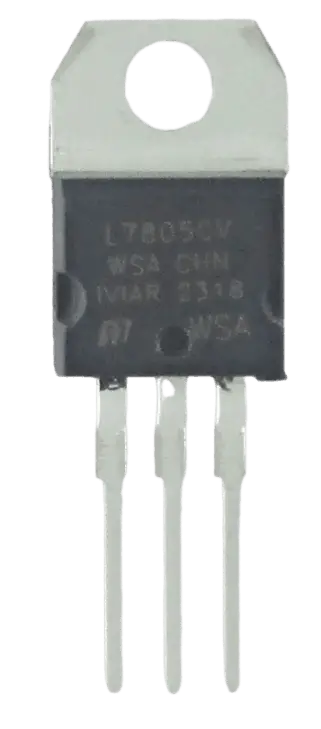

L7805 +5v positive Voltage Regulator

L7805 positive voltage regulator IC designed to provide a fixed 5 V output for a wide range of electronic applications. This regulator delivers up to 1.5 A output current with built-in protection features such as thermal overload protection and short circuit protection, ensuring safe and stable operation. It is widely used in regulated power supplies and can also be adapted with external components for adjustable voltage and current configurations.

Configuration:
Fixed positive voltage regulator IC
3 terminal device
Through-hole package (TO-220)

Electrical Characteristics:
Output voltage: 5 V
Output current: up to 1.5 A

Package:
TO-220 through-hole package

Construction:
Integrated thermal overload protection
Short circuit protection
High quality and reliable design

Configuration Notes:
Provides stable fixed 5 V output
Can be used with external components for adjustable configurations

Intended Use:
Regulated power supplies
Microcontroller and logic circuits
General electronic circuits
DIY and repair applications
