TL072 Dual JFET Input Operational Amplifier IC DIP-8 Package

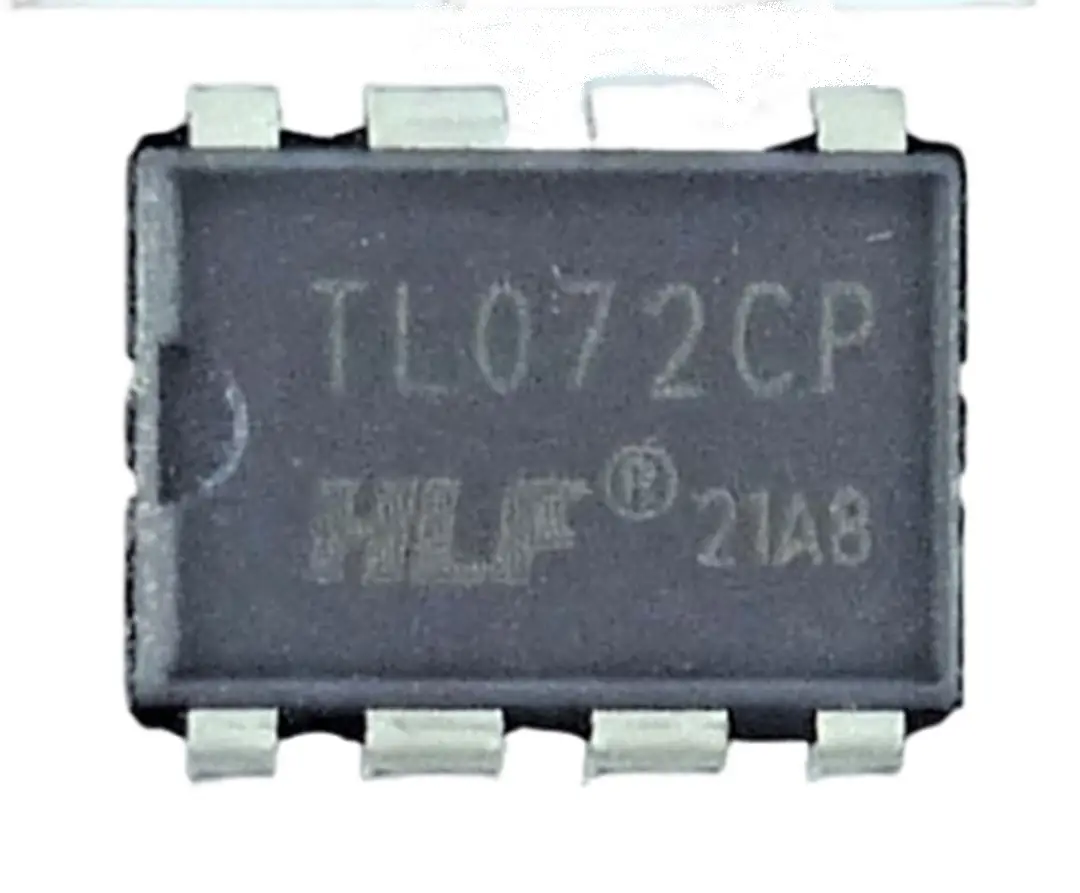

TL072 Dual JFET-Input Operational Amplifier (DIP-8)

The TL072 is a dual operational amplifier with JFET inputs, designed for low-noise and high-speed analog signal processing applications.

Configuration:

• Dual op-amp (2 independent amplifiers in a single package)
• JFET-input stage for high input impedance and low input bias current

Electrical Characteristics:

• Supply voltage range: ±5 V to ±18 V (dual supply)
• High input impedance
• Low input bias current
• Low noise performance
• High slew rate for fast signal response
• Low distortion characteristics
• Unity-gain stable

Package:

• PDIP-8 (DIP-8) through-hole package

Construction:

• Suitable for through-hole PCB designs

Intended Use:

• Audio pre-amplifiers and tone control circuits
• Active filters and signal conditioning circuits
• Instrumentation and analog signal processing
• General-purpose analog circuit design
