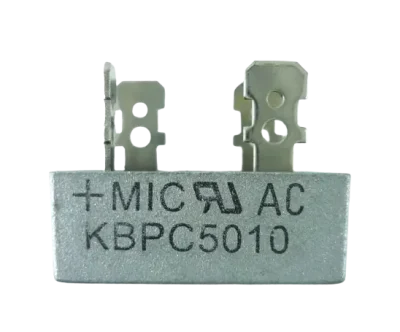

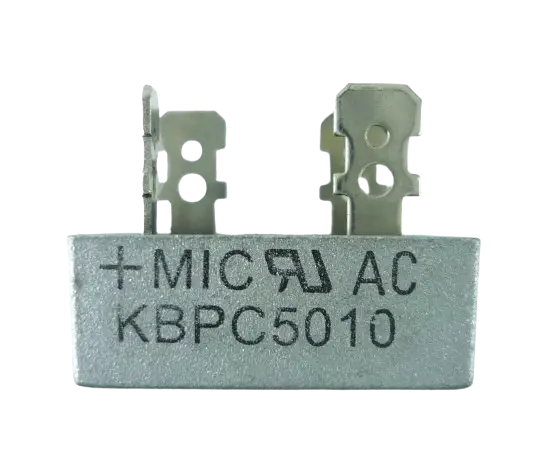

The KBPC5010 is a single-phase silicon bridge rectifier designed for high-current AC to DC conversion applications, suitable for industrial power supplies and heavy-duty rectification circuits.
Configuration:
Single-phase full bridge rectifier
Silicon diode construction
Electrical Characteristics:
Maximum recurrent peak reverse voltage (VRRM): 1000 V
Maximum DC blocking voltage (VDC): 1000 V
Maximum RMS voltage (VRMS): 700 V
Average forward current (IF(AV)): 50 A (at Tc = 55 °C)
Peak forward surge current (IFSM): 400 A (single half-sine wave)
Forward voltage drop (VF): approximately 1.1 V per diode at 25 A
Package:
Metal case with bolt-down mounting and terminal connections
Construction:
Heavy-duty metal body for efficient heat dissipation
Designed for heatsink mounting and high-current PCB or chassis connection
Suitable for high-power operation with proper thermal management
Configuration Notes:
Designed for high-current, high-voltage rectification
Capable of handling large surge currents in power applications
Requires proper heatsinking for continuous operation
Intended Use:
High-power power supply circuits
Industrial rectification systems
Battery charging systems
Motor drives and control circuits
General-purpose high-current AC to DC conversion
