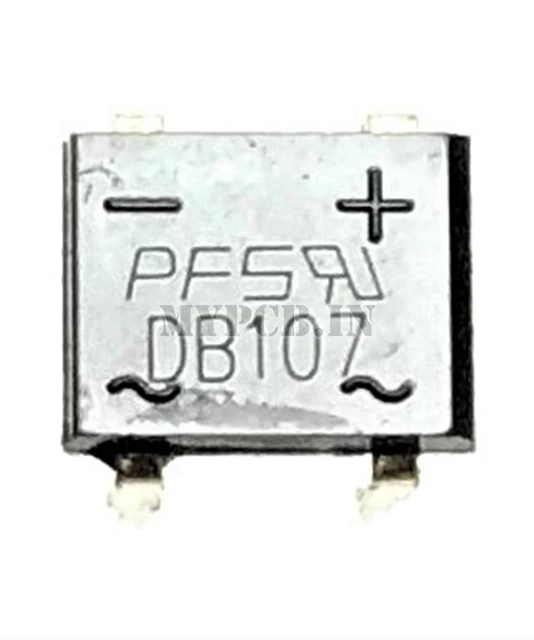

The DB107 is a single-phase bridge rectifier designed for AC to DC conversion in power supply applications, suitable for general-purpose rectification circuits.
Configuration:
Single-phase full bridge rectifier
Silicon diode construction
Electrical Characteristics:
Peak repetitive reverse voltage (VRRM): 1000 V
Average forward current (IF): 1 A
Surge forward current (IFSM): up to 50 A
Forward voltage drop (VF): approximately 1.1 V per diode at 1 A
Package:
DB through-hole package
Construction:
Glass passivated junction for improved reliability
Designed for PCB mounting
Wide operating temperature range from −65 °C to +150 °C
Configuration Notes:
Suitable for AC to DC rectification in low to medium current circuits
Compact package for space-constrained designs
Capable of handling surge conditions in power applications
Intended Use:
Power supply circuits
AC to DC adapters
Battery charging circuits
General rectification applications
