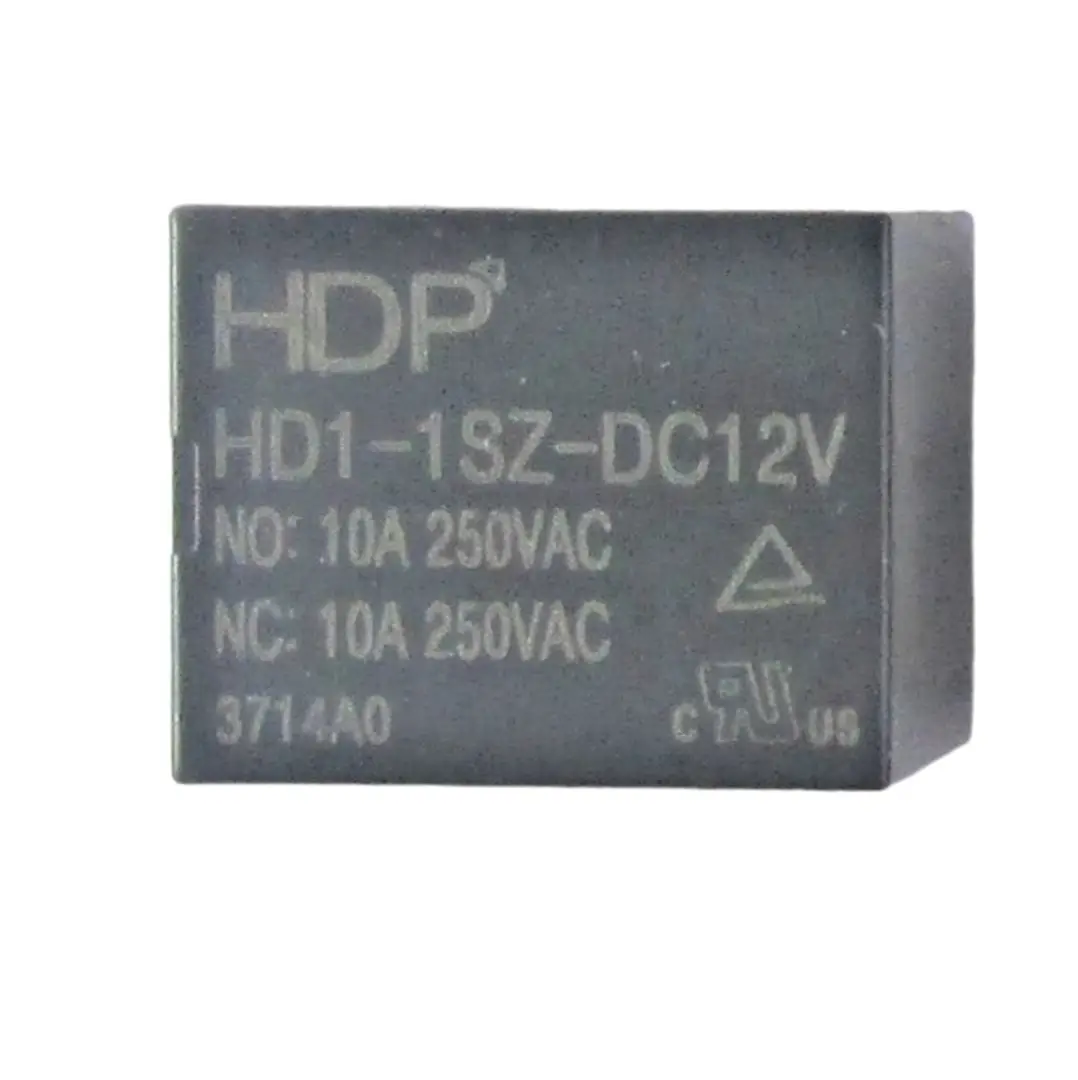

12 V 10 A SPDT PCB power relay designed for switching high current loads in electronic and electrical applications. This single pole double throw (SPDT) relay features a compact cube form factor and is suitable for PCB mounting. It supports resistive loads up to 10 A and provides reliable switching performance with durable contacts and stable coil operation.
Configuration:
Single pole double throw (SPDT) relay (1C contact)
PCB mount type
Compact cube form factor
Electrical Characteristics:
Rated coil voltage: 12 V DC
Contact rating: up to 10 A
Maximum switching voltage: up to 250 VAC / 125 VDC
Operate time: ≤10 ms
Release time: ≤5 ms
Contact resistance: ≤100 mΩ
Insulation resistance: ≥100 MΩ
Dielectric strength: 2000 VAC (coil to contacts)
Package:
PCB mount power relay
Construction:
Silver alloy contacts (cadmium free)
Sealed / flux protected enclosure options
Designed for long mechanical and electrical life
Configuration Notes:
Supports NO (Normally Open) and NC (Normally Closed) contacts
Designed for general-purpose power switching
Compact size suitable for PCB layouts
Intended Use:
Power supply switching
Home appliances and control circuits
Automation systems
DIY and industrial applications
