10A Power Supply Rectifier Board 6A4 10A10 Diodes – PCB only

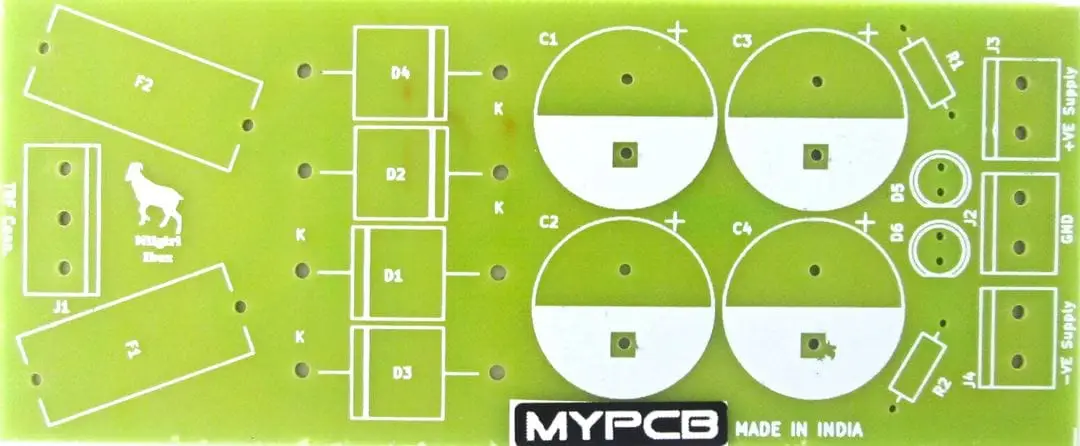

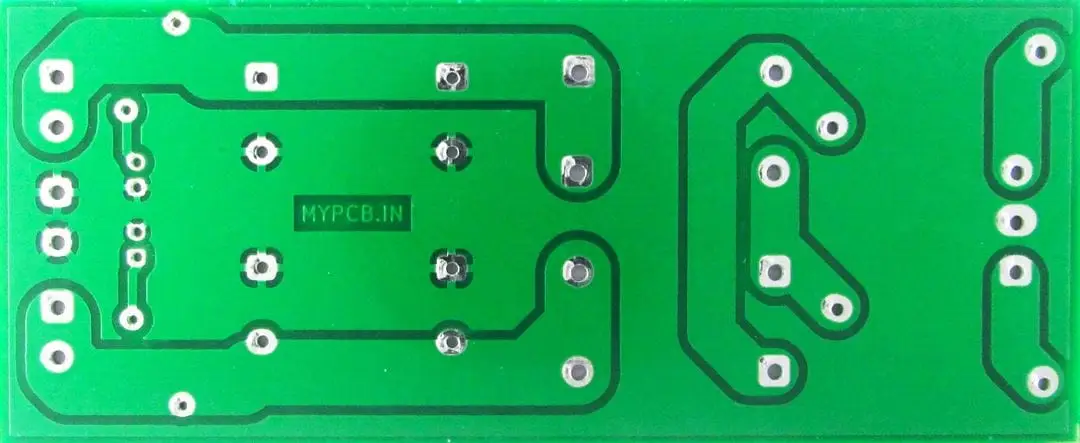

10 Ampere Power Supply Rectifier PCB Board

This PCB board is designed for AC to DC conversion using a center-tapped transformer and external components such as rectifier and filter capacitors.

Working Voltage:

• Maximum DC output voltage: up to ±50 V DC (depends on selected filter capacitors and transformer)
• Recommended transformer: up to 30-0-30 VAC (step-down, center-tapped)

Current Capacity:

• Maximum current handling: up to 10 A (depends on components used such as rectifier, transformer, and wiring)

Board Specifications:

• PCB material: Glass Epoxy FR4, Grade A
• Board dimensions: 110 mm × 46 mm (4.3 inch × 1.8 inch)
• PCB thickness: 1.6 mm

Features:

• Dual fuse protection (fuse size: 5 mm × 20 mm)
• LED indicators for each DC rail
• Designed for use with external bridge rectifier and filter capacitors

Configuration:

• Supports center-tapped transformer input for dual DC rail generation
• Output voltage and ripple performance depend on transformer rating and filter capacitor selection

Included Support Material:

• Circuit diagram provided
• List of components (BOM) included

Intended Use:

• Power supply section for audio amplifier circuits
• Battery charging circuits (depending on design implementation)
• General-purpose DC power supply for DIY and electronics projects
