TDA7294 100 Watt Audio Power Amplifier Board PCB only

TDA7294 100 Watt Audio Power Amplifier PCB Board (Bare PCB)

This PCB is designed for building a mono audio amplifier using TDA7294 or compatible ICs. Output performance depends on components used and assembly quality.

Output Power:

• Maximum output power: up to 100 W (depends on supply voltage, load, and heat dissipation)

Working Voltage:

• Dual supply: ±18 V to ±35 V DC
• Recommended transformer: 24-0-24 VAC, 5 A (step-down)

IC Compatibility:

• TDA7293, TDA7294, TDA7295, TDA7296 (pin-to-pin compatible)

Speaker Compatibility:

• Supports 4 Ω and 8 Ω speaker loads

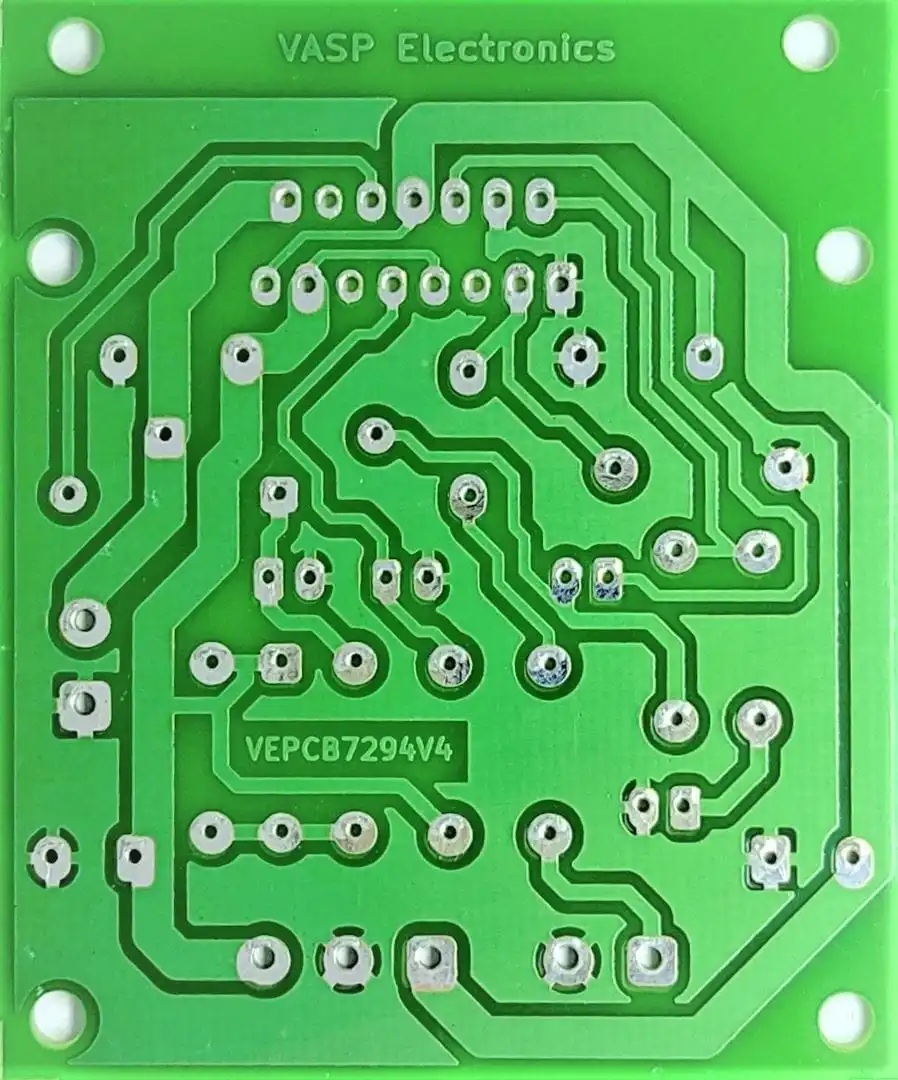

Board Specifications:

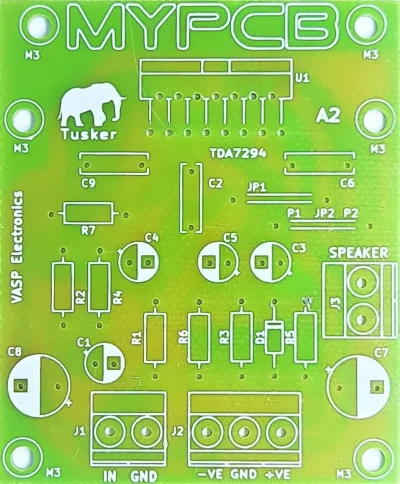

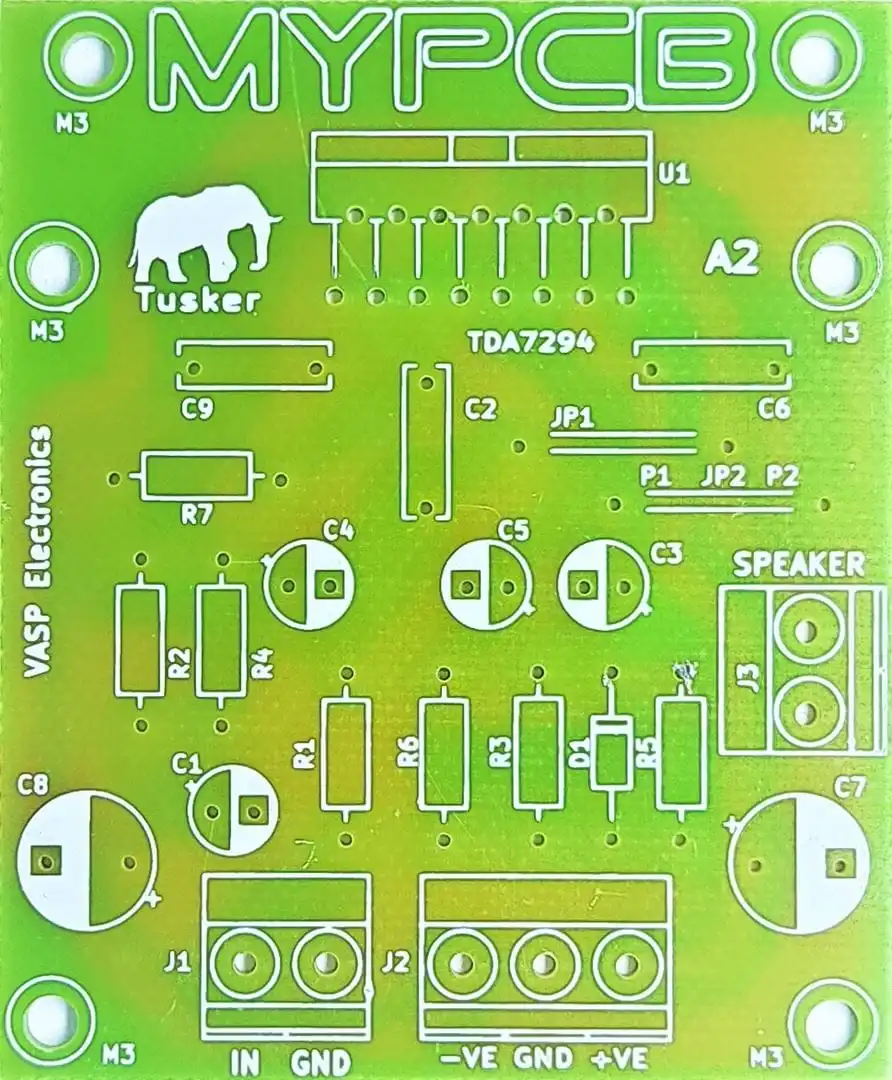

• Compact PCB layout for enclosure integration

Construction:

• Bare PCB (components not included)
• Designed for through-hole components
• Uses commonly available components

Configuration:

• Designed for dual-rail DC operation using a center-tapped transformer
• Requires proper heat sinking and component selection
• Final performance depends on assembly quality and power supply design

Included Support Material:

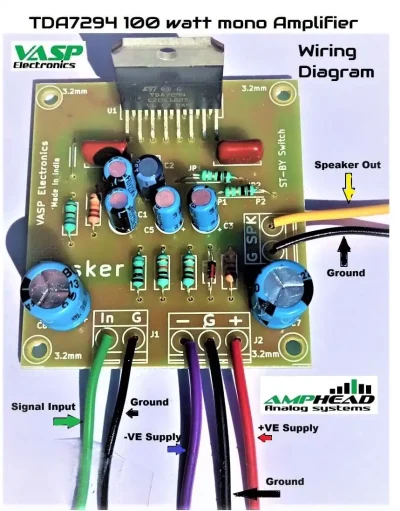

• Circuit diagram provided
• Bill of Materials (BOM) included
• Assembly and connection instructions provided

Manufacturing:

• PCB manufactured in India

Intended Use:

• Audio amplifier construction for home audio systems
• Subwoofer and full-range speaker applications
• Musical instrument amplification (e.g., guitar and similar audio sources)
• DIY audio amplifier projects
