TDA2030 20w + 20 Watt Stereo Amplifier Board Hobby Kit

TDA2030A Stereo Audio Amplifier Kit (20 W + 20 W, with Components and PCB)

This kit is designed for building a stereo audio amplifier using TDA2030A or compatible ICs. It includes all required components and PCB for assembly.

Output Power:

• Stereo output: up to 20 W + 20 W (depends on supply voltage, load, and heat dissipation)
• Bridge mode: up to 36 W output (depends on configuration and supply conditions)

Working Voltage:

• Dual supply: ±6 V to ±18 V DC
• Single supply range: 6 V to 22 V DC
• Recommended transformer: 12-0-12 VAC to 15-0-15 VAC, 3 A (step-down)

IC Compatibility:

• TDA2030A (included in kit)
• Compatible with TDA2050 and LM1875

Speaker Compatibility:

• Supports 4 Ω and 8 Ω speaker loads (depending on configuration)

Board Specifications:

• PCB material: Glass Epoxy FR4, Grade A
• PCB dimensions: 85 mm × 55 mm

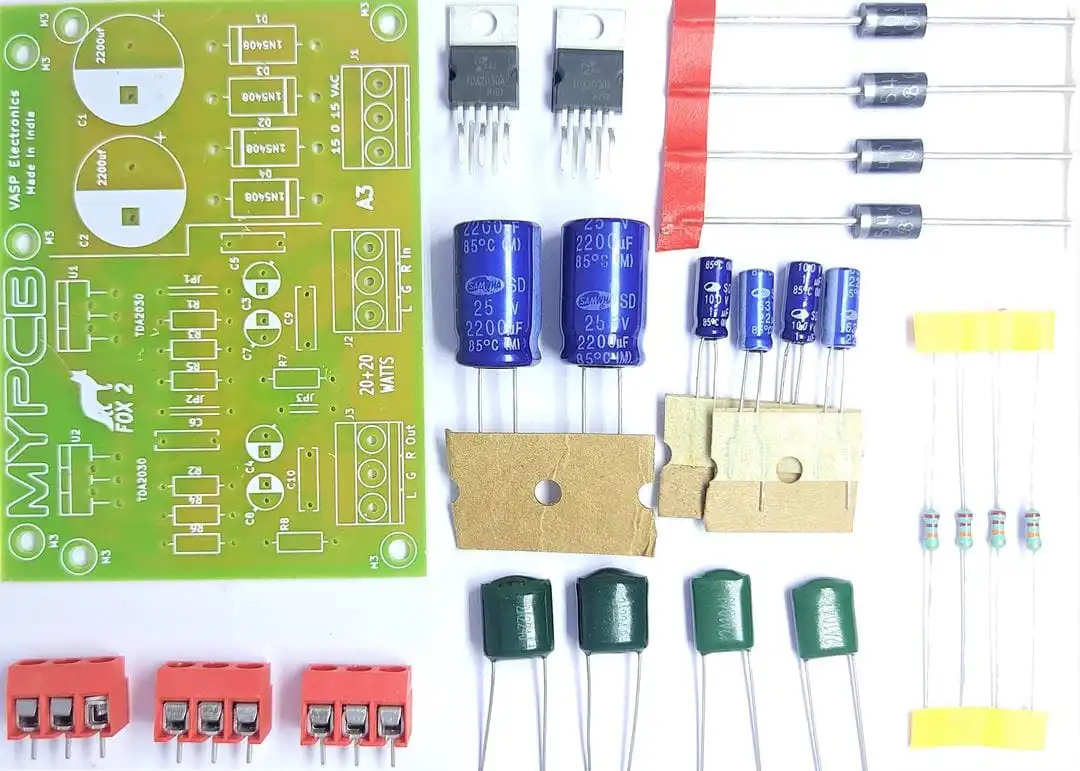

Kit Contents:

• PCB board
• All required electronic components for assembly
• Amplifier IC(s)

Configuration:

• Class AB amplifier design
• Supports stereo and bridge configuration
• PCB layout designed for low distortion and stable operation
• Requires proper heat sink for amplifier IC

Included Support Material:

• Circuit diagram provided
• Bill of Materials (BOM) included
• Assembly instructions provided

Manufacturing:

• PCB manufactured in India

Intended Use:

• Desktop and laptop speaker amplifier systems
• Small stereo audio systems
• DIY audio amplifier projects and learning kits
