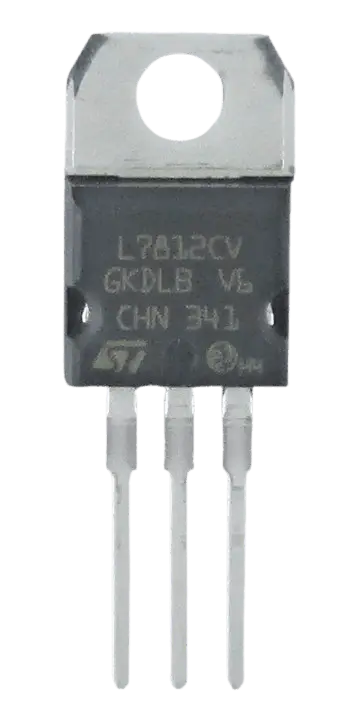

L7812 +12v Positive Voltage Regulator

L7812 positive voltage regulator IC designed to provide a fixed 12 V output for a wide range of electronic applications. This regulator delivers up to 1.5 A output current with built-in protection features such as thermal overload protection and short circuit protection, ensuring safe and stable operation. It is commonly used in regulated power supplies and can also be adapted with external components for adjustable voltage and current applications.

Configuration:
Fixed positive voltage regulator IC
3 terminal device
Through-hole package (TO-220)

Electrical Characteristics:
Output voltage: 12 V
Output current: up to 1.5 A

Package:
TO-220 through-hole package

Construction:
Integrated thermal overload protection
Short circuit protection
High quality and reliable design

Configuration Notes:
Provides stable fixed 12 V output
Can be used with external components for adjustable configurations

Intended Use:
Regulated power supplies
General electronic circuits
Battery-powered systems
DIY and repair applications
