Hi Gain Stereo Bass Treble Board

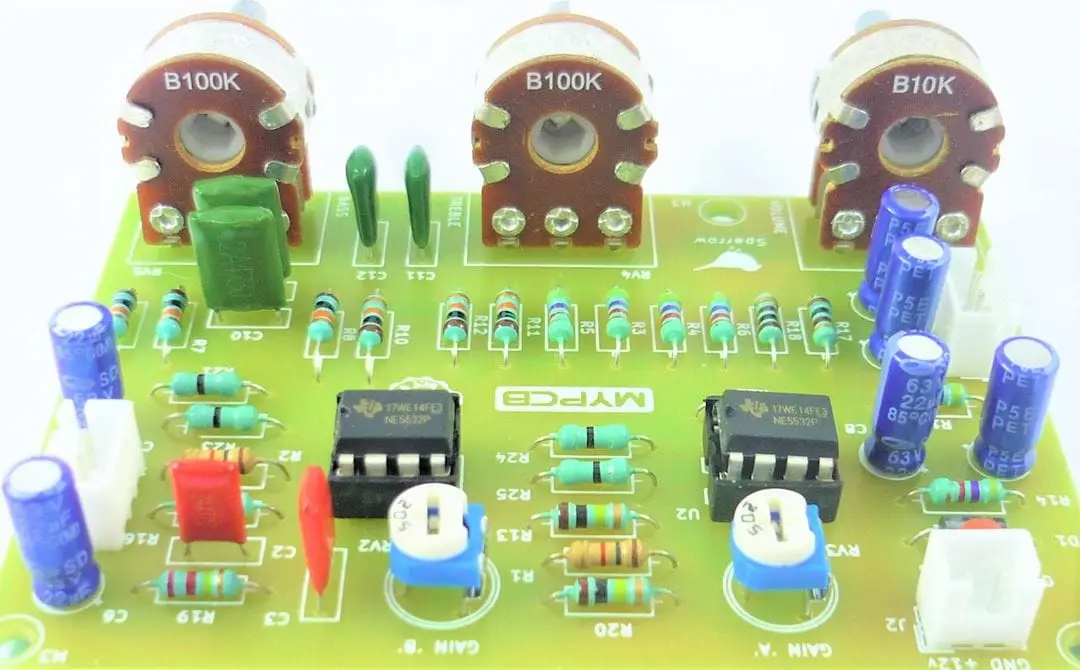

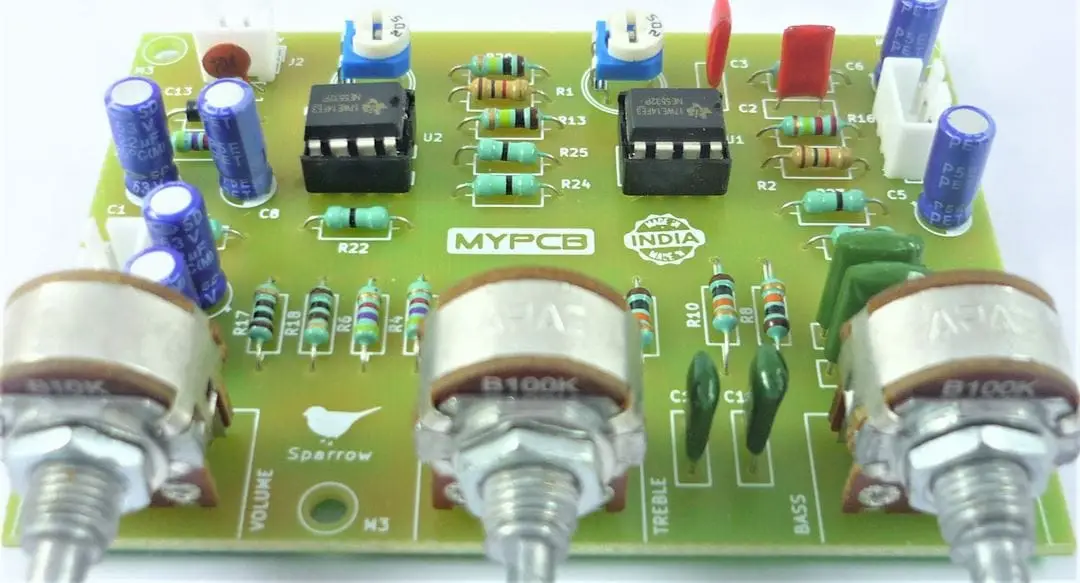

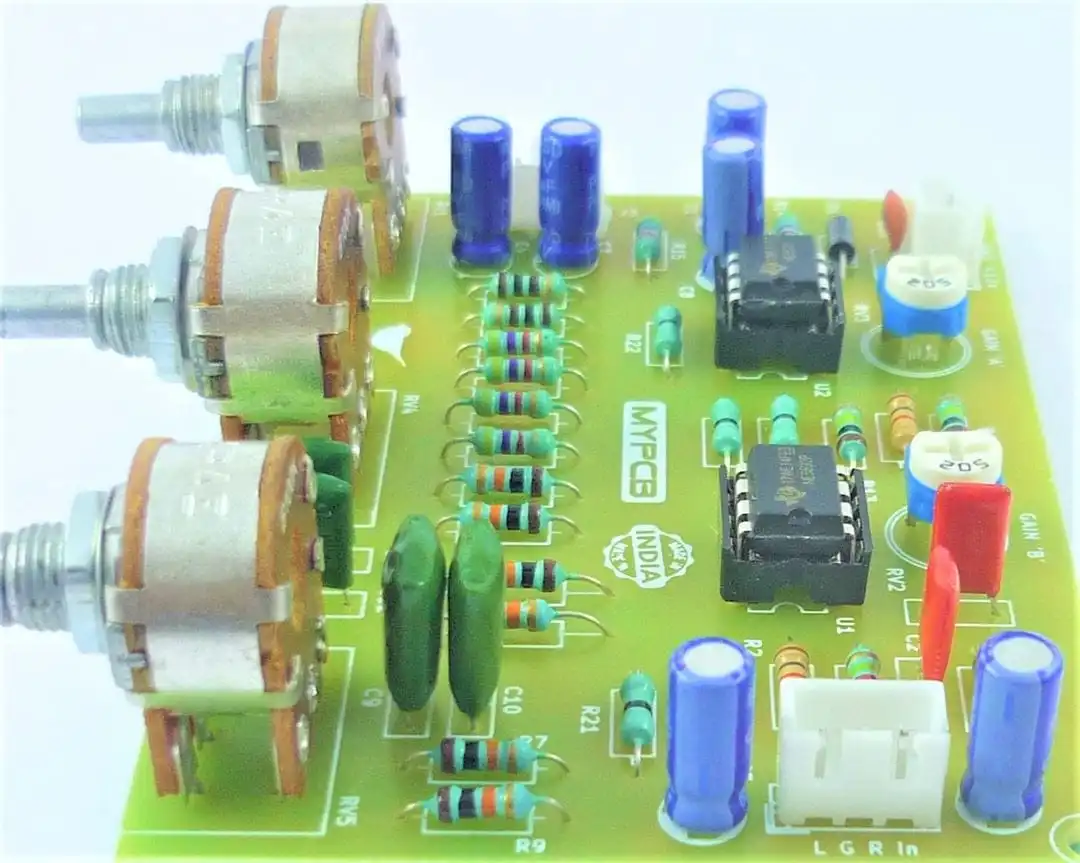

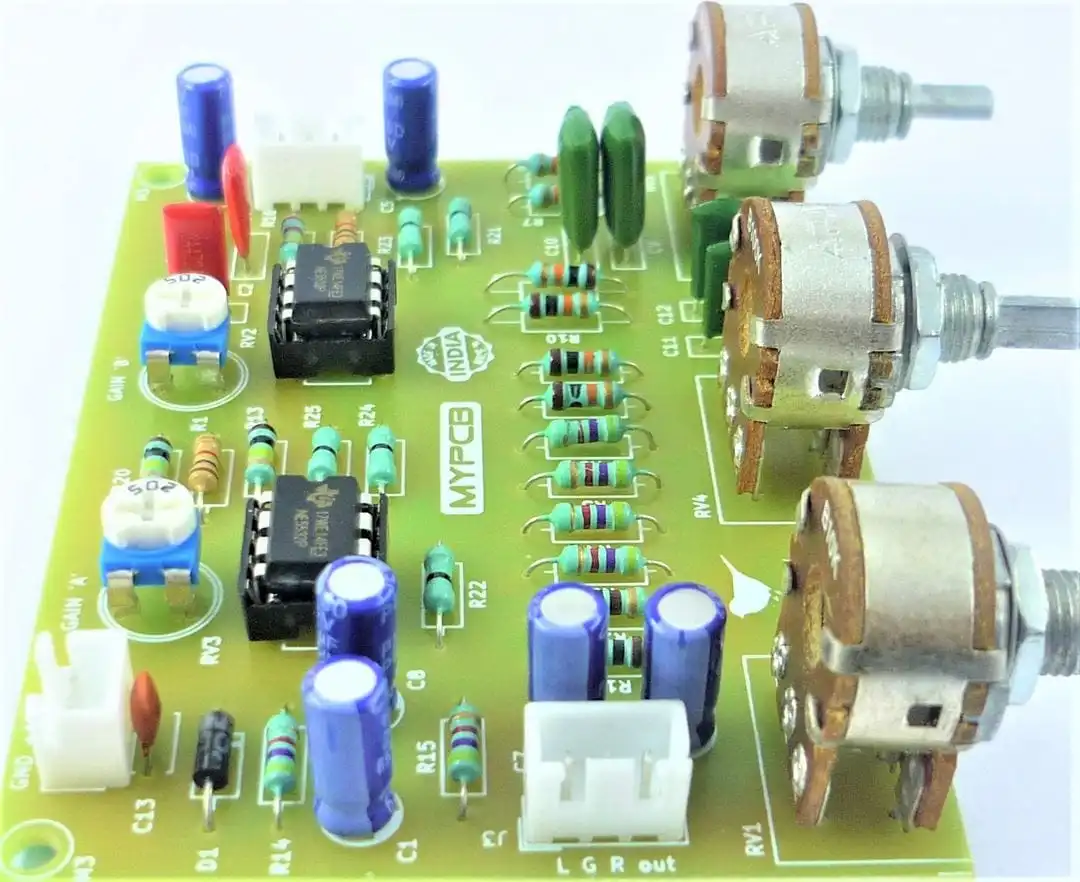

Hi-Gain Stereo Bass Treble Control Board (Assembled)

This assembled board is designed for stereo audio tone control with bass and treble adjustment and signal gain.

Working Voltage:

• Single supply: +12 V DC

Signal Processing:

• Bass and treble adjustment: up to ±15 dB (depends on circuit configuration)
• Signal gain: up to 20 dB (for driving power amplifiers)
• RF input filter for reduction of unwanted noise

Op-Amp Configuration:

• Separate op-amp IC used for each channel
• Designed for improved channel separation and reduced crosstalk

Features:

• Suitable for use with audio amplifiers based on ICs or discrete transistors
• Designed to drive power amplifier stages

Connectors:

• 2.54 mm JST / Relimate connectors for input, output, and power connections

Board Specifications:

• PCB dimensions: 86 mm × 62 mm
• PCB thickness: 1.6 mm

Construction:

• Fully assembled board
• Uses through-hole components

Configuration:

• Ready to use with compatible audio amplifier systems
• Performance depends on input signal and system configuration

Intended Use:

• Stereo tone control (bass and treble) in audio systems
• Pre-amplifier stage for amplifier circuits
• Integration in DIY audio and speaker projects
