6v / 12v LED Emergency Light Auto Battery charging PCB only

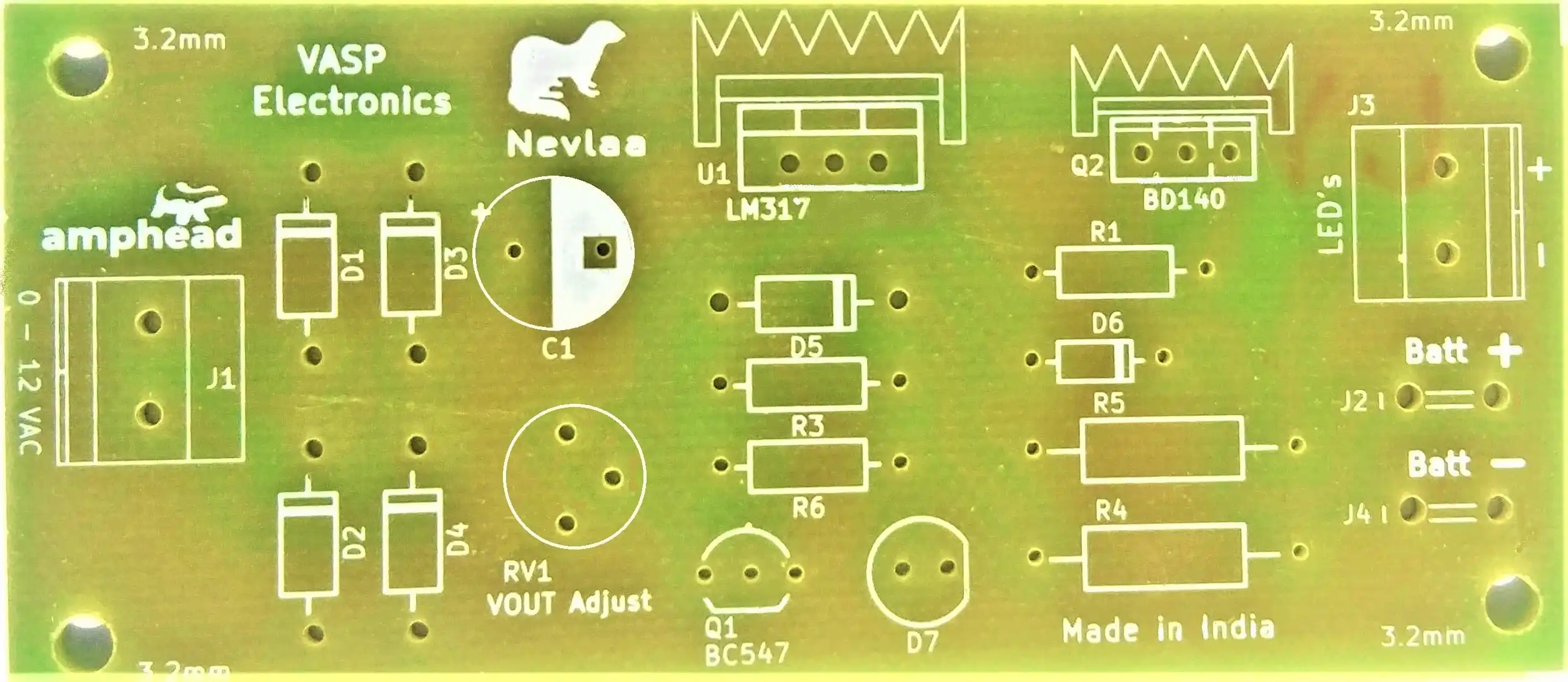

6 V / 12 V LED Emergency Light with Automatic Battery Charging PCB Board (Bare PCB)

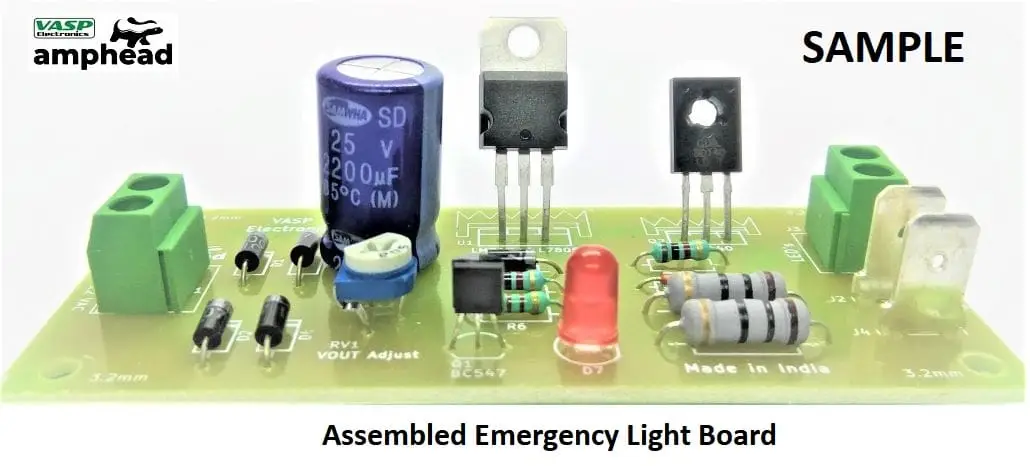

This PCB is designed for building an LED emergency light with automatic battery charging functionality. Performance depends on components used and assembly quality.

Working Voltage:

• Input supply: 0 to 12 V AC, 500 mA (step-down transformer recommended)

Output:

• LED output current: up to 500 mA (depends on components used)
• Supports 6 V or 12 V battery configurations (based on setup)

Charging Configuration:

• Automatic battery charging circuit
• Charging behavior depends on battery type and component selection

Board Specifications:

• PCB dimensions: 85 mm × 33 mm (3.3 inch × 1.3 inch)

Construction:

• Bare PCB (components not included)
• Designed for through-hole components
• Components are commonly available

Features:

• Simple and reliable circuit design
• Designed for use with high-brightness LEDs
• Low maintenance operation (depends on proper assembly and battery condition)

Included Support Material:

• Circuit diagram provided
• Bill of Materials (BOM) included
• Assembly and connection instructions provided

Manufacturing:

• PCB manufactured in India

Intended Use:

• LED emergency lighting systems
• Educational and DIY electronics projects
• Backup lighting applications
