2N3773 NPN Power Transistor – TO-3P Package

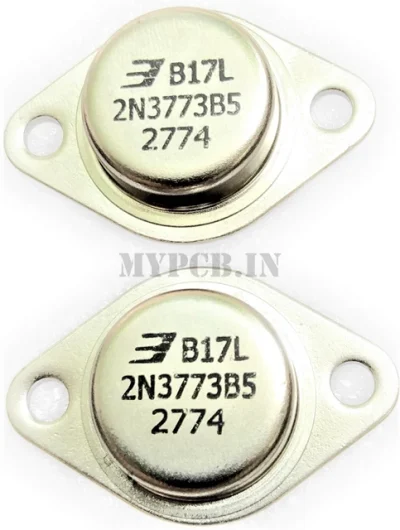

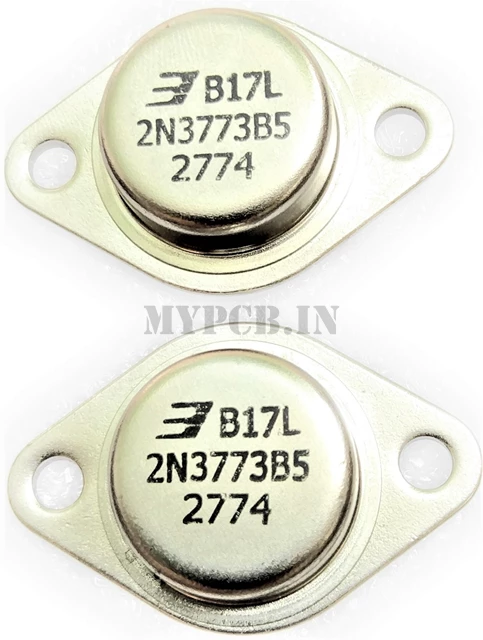

2N3773 NPN Power Transistor (TO-3 Metal Can)

The 2N3773 is an NPN power transistor designed for high-power amplification and switching applications, commonly used in audio amplifiers and industrial circuits.

Configuration:
NPN bipolar junction transistor
Silicon construction

Electrical Characteristics:
Maximum working voltage: 140 V
Maximum collector current: 16 A
Power dissipation: 150 W

Package:
TO-3 metal can package

Construction:
Metal can body for efficient heat dissipation
Designed for chassis or heatsink mounting
Suitable for high-power applications

Configuration Notes:
Suitable for high-power amplifier and regulator circuits
Reliable performance in high-current applications
Requires proper heatsinking for safe operation

Intended Use:
Audio power amplifiers
Power supply circuits
Voltage regulator designs
Industrial power applications
General-purpose high-power applications
