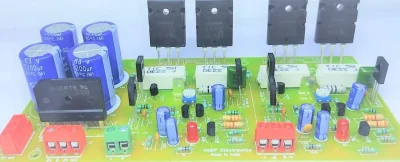

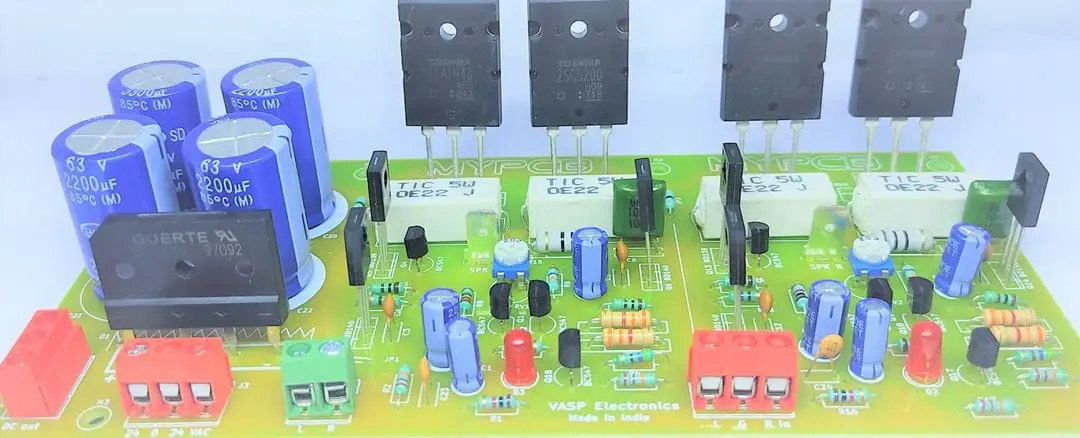

This amplifier board is designed for stereo audio amplification with onboard rectification and filtering, allowing direct connection of a center-tapped transformer.
Output Power:
Stereo output: up to 100 W per channel (depends on supply voltage, load, and heat dissipation)
Working Voltage:
Dual supply derived from onboard rectifier
Recommended transformer: 24-0-24 VAC, 5 A to 8 A (step-down)
Speaker Compatibility:
Supports 4 Ω speaker loads for higher output power
Suitable for standard home audio speaker systems
Performance:
Total Harmonic Distortion (THD + N): less than 0.1% at full output (depends on input signal and operating conditions)

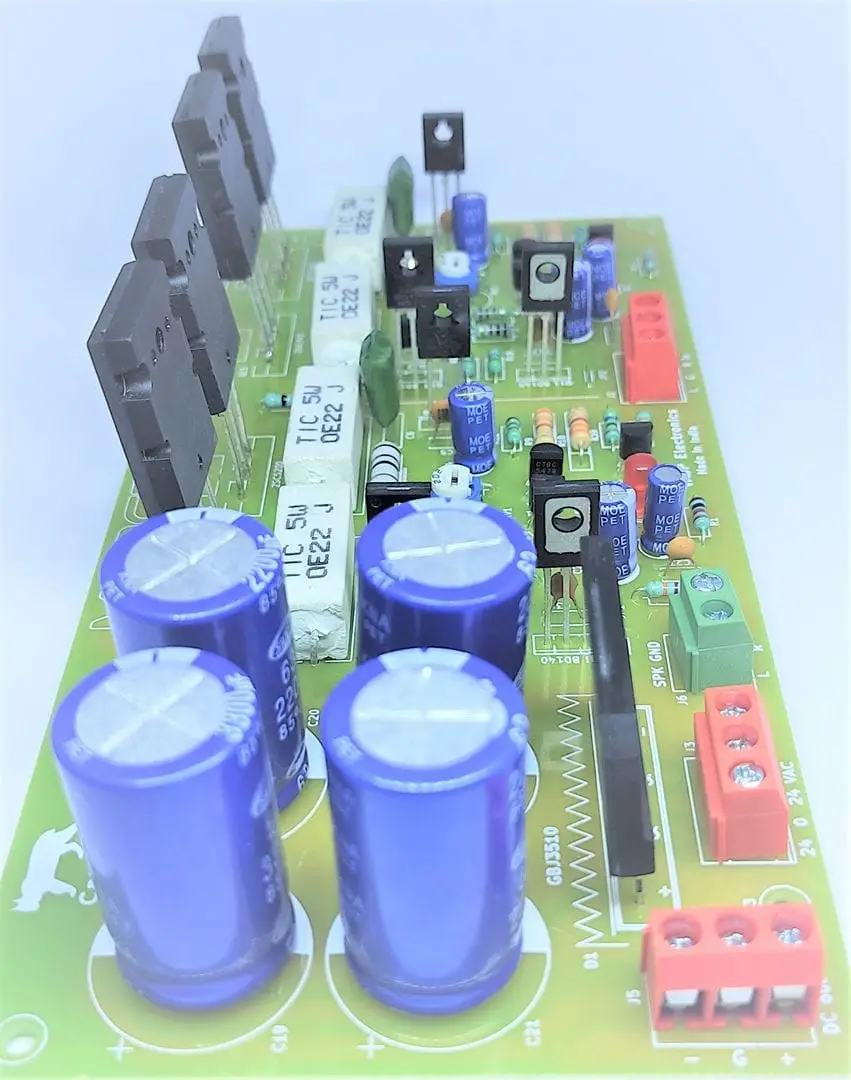

Power Supply Section:
Onboard full-wave bridge rectifier
Integrated filter capacitors for DC smoothing
Transformer can be connected directly to the board

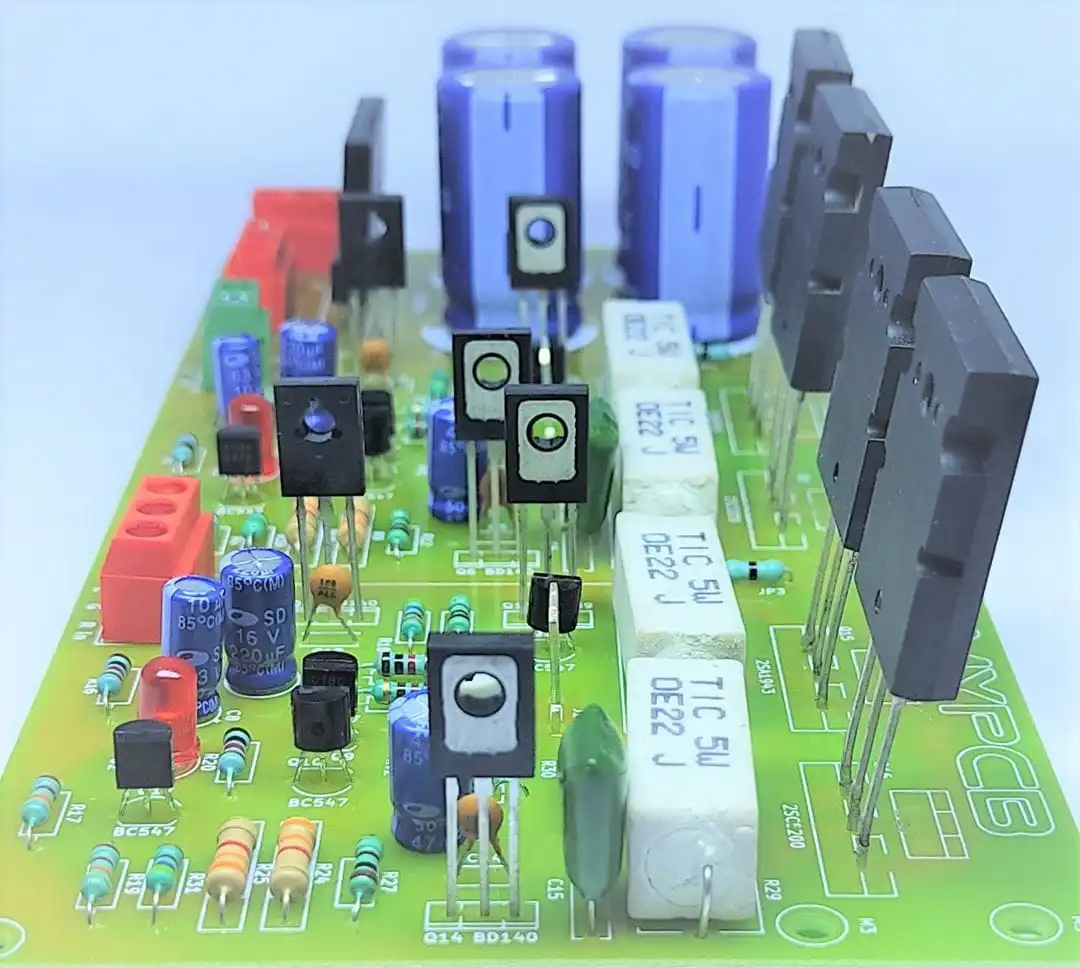

Construction:
Uses standard through-hole components
No SMD components used, allowing easier assembly, servicing, and replacement
Components are commonly available in electronics stores

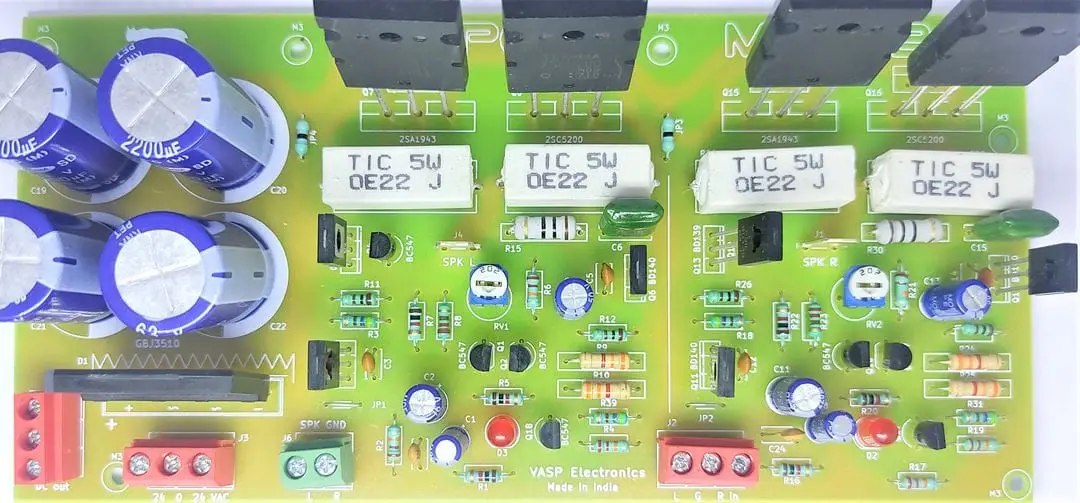

Configuration:
Fully assembled amplifier board
Requires appropriate heat sinking for continuous operation at higher power levels
Intended Use:
Stereo audio amplification for home audio systems
Amplified speaker systems and DIY audio projects
Integration into custom audio enclosures and setups
