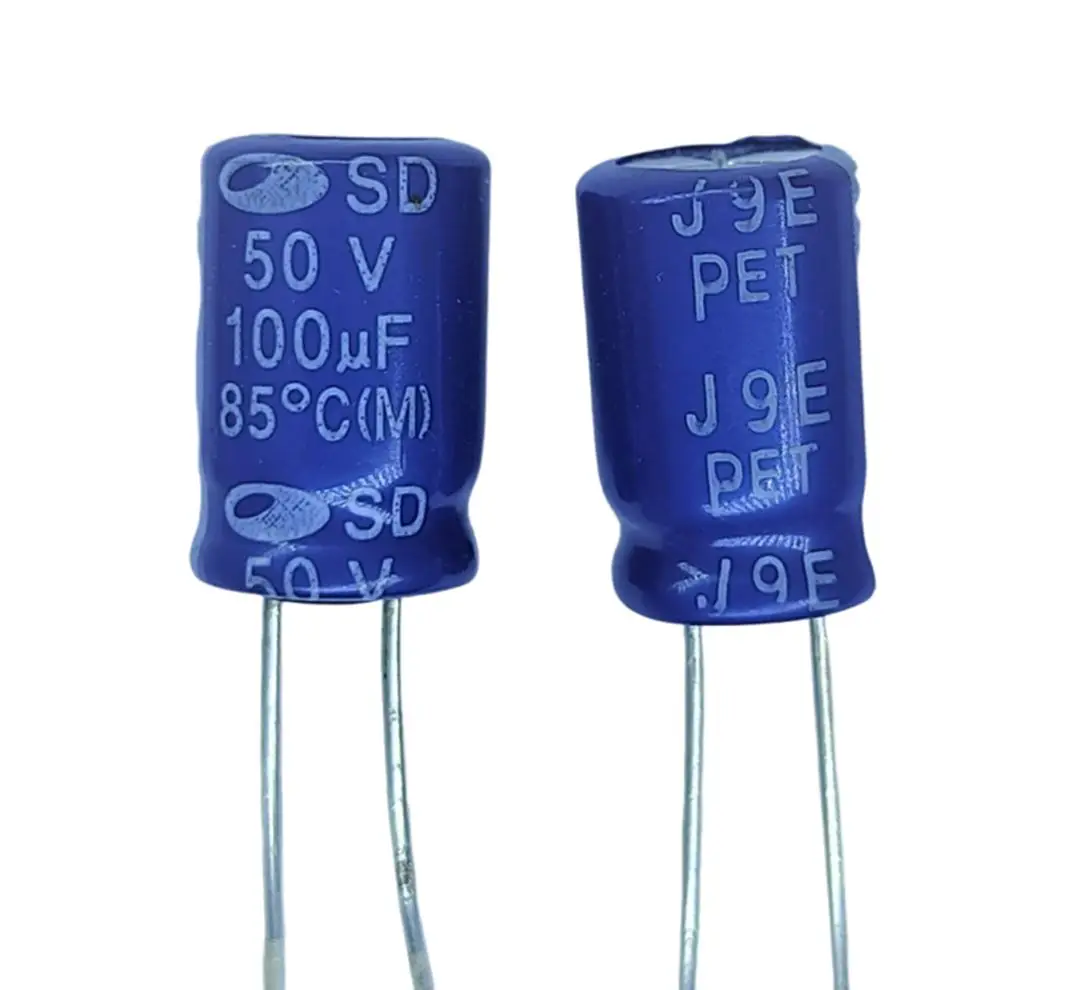

The 100µF 50V aluminum electrolytic capacitor is a general-purpose polarized component designed for filtering, smoothing, and decoupling applications in electronic circuits.
Configuration:
Aluminum electrolytic capacitor
Polarized construction
Electrical Characteristics:
Capacitance: 100 µF
Rated voltage: 50 V DC
Capacitance tolerance: ±20% (at 120 Hz, 20 °C)
Operating temperature range: −40 °C to +85 °C
Package:
Radial through-hole package
Diameter: 10 mm
Construction:
Polarized capacitor with safety vent
Designed for PCB mounting with radial leads
RoHS compliant
Configuration Notes:
Suitable for filtering, smoothing, and decoupling applications
Requires correct polarity during installation
Stable performance across specified temperature range
Intended Use:
Power supply filtering
Signal decoupling circuits
Control circuits
General-purpose electronic applications
