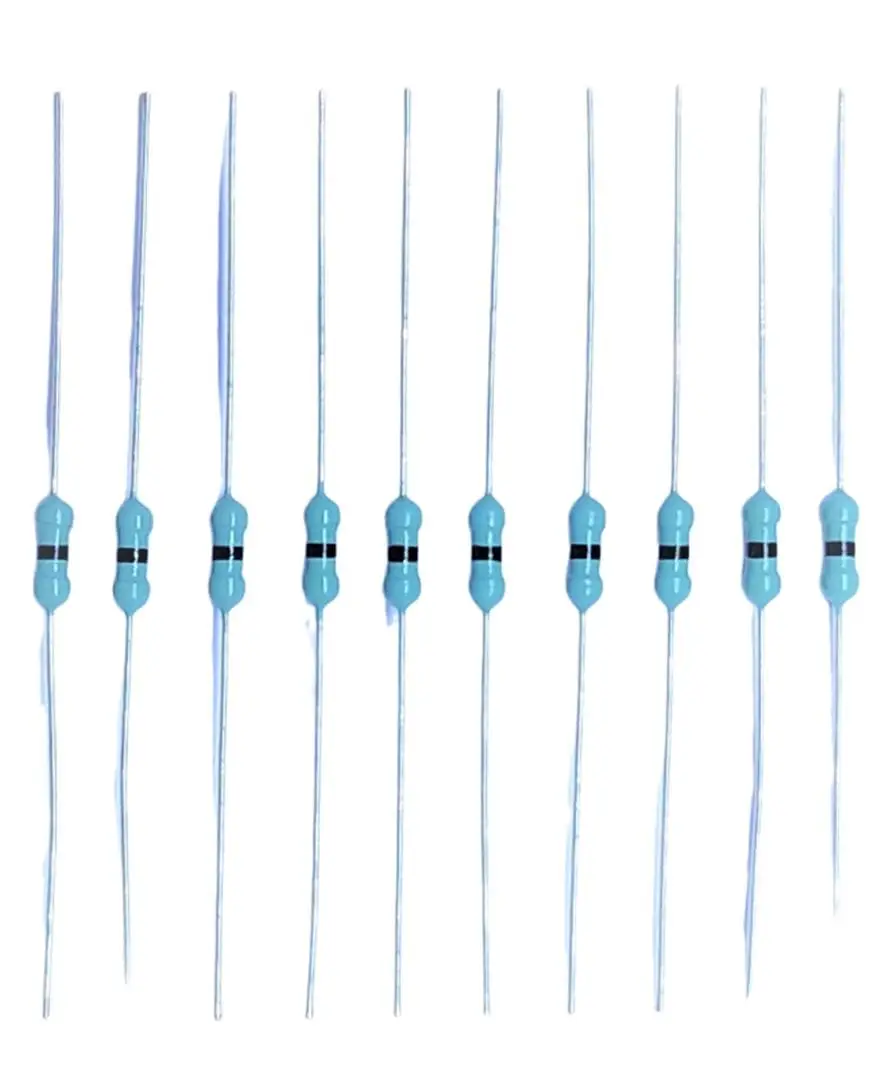

0 ohm resistor designed to provide an extremely low resistance path for use as a jumper or link in electronic circuits. These resistors typically have a maximum resistance value close to 0.01 Ω and are identified by a single black band marking. They are commonly used to bridge connections on PCBs where a wire link is required, offering a neat and automated assembly alternative to jumper wires.
Configuration:
Zero ohm resistor
Through-hole mounting type
Single band identification (black)
Electrical Characteristics:
Resistance value: ~0 Ω (typically ≤0.01 Ω)
High current carrying capability (application dependent)
Package:
Standard through-hole resistor package
Construction:
Tin plated copper element for low resistance path
Durable and reliable construction
Configuration Notes:
Acts as a wire jumper or link on PCB
Suitable for automated insertion processes
Provides clean and organized circuit routing
Intended Use:
PCB jumper/link connections
Circuit configuration and routing
Testing and prototyping
General electronic applications
